Source : IRAS16293

Line : 12CO(3-2)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

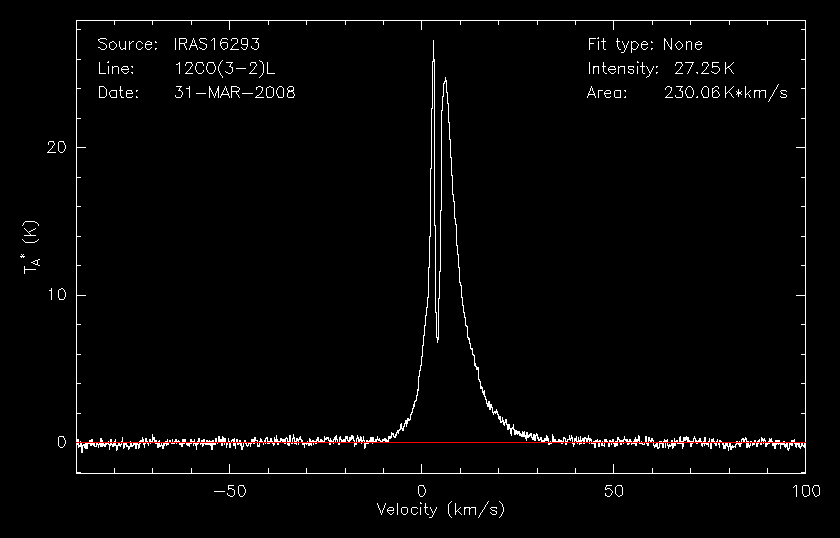

2008-03-31
0.69
56.7
27.26
230.06
7.416
8.44

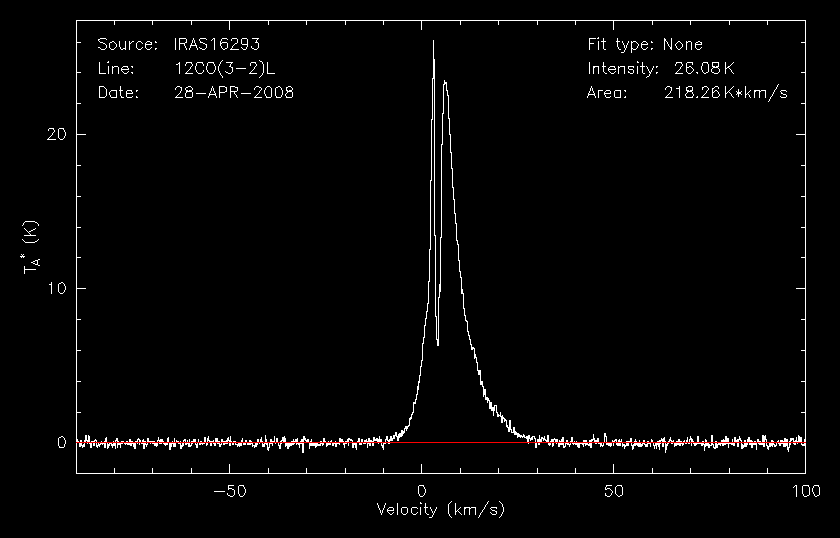

2008-04-28
0.39
63.7
26.09
218.27
7.517
8.37

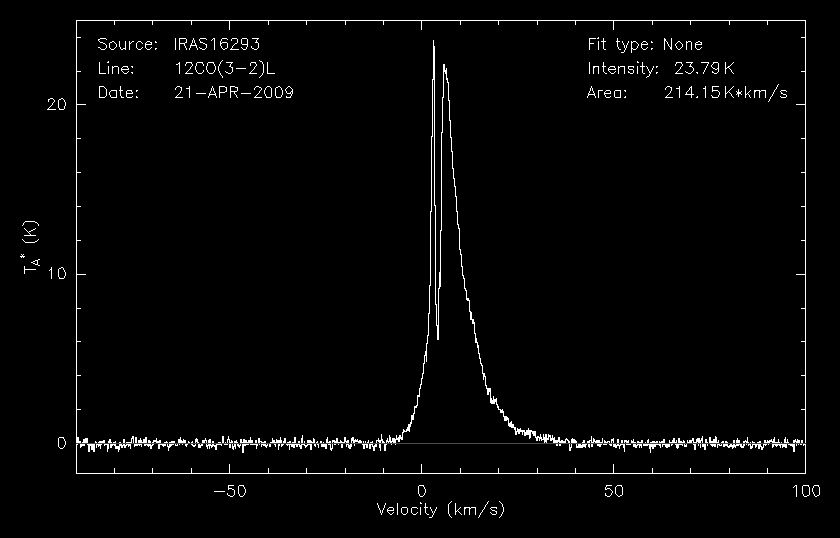

2009-04-21
0.88
69.1
23.79
214.16
8.559
9.00

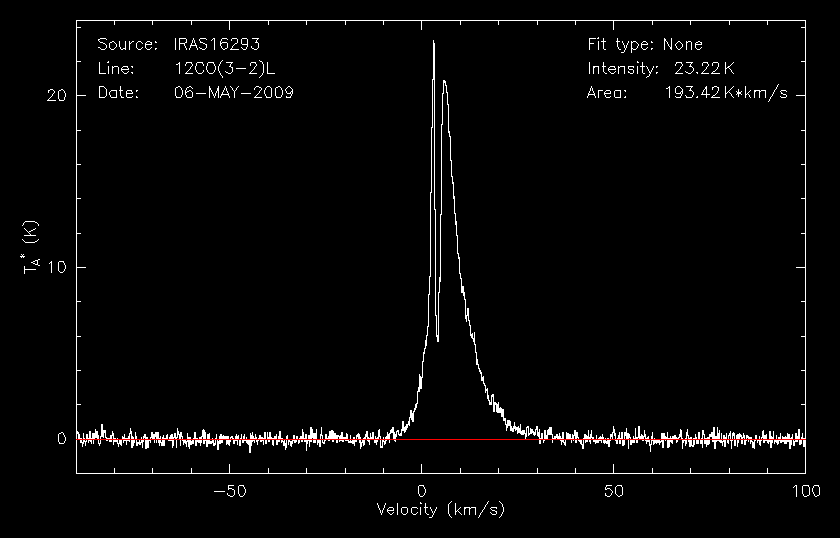

2009-05-06
1.94
56.1
23.22
193.42
7.983
8.33

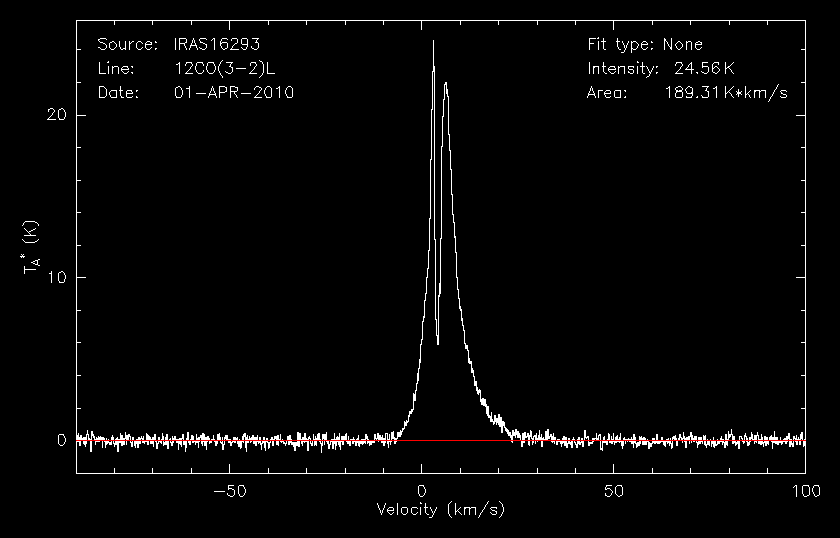

2010-04-01
1.59
49.0
24.57
189.32
6.612
7.71

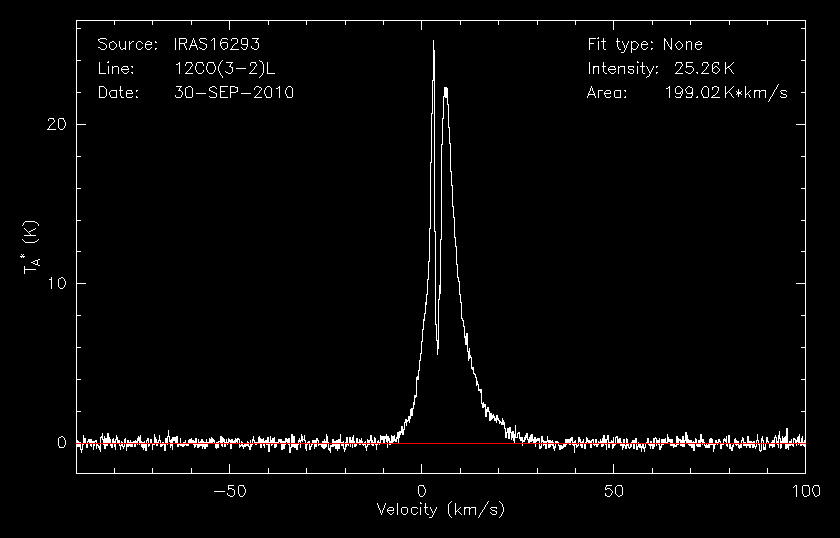

2010-09-30
1.13
40.0
25.26
199.03
6.701
7.88

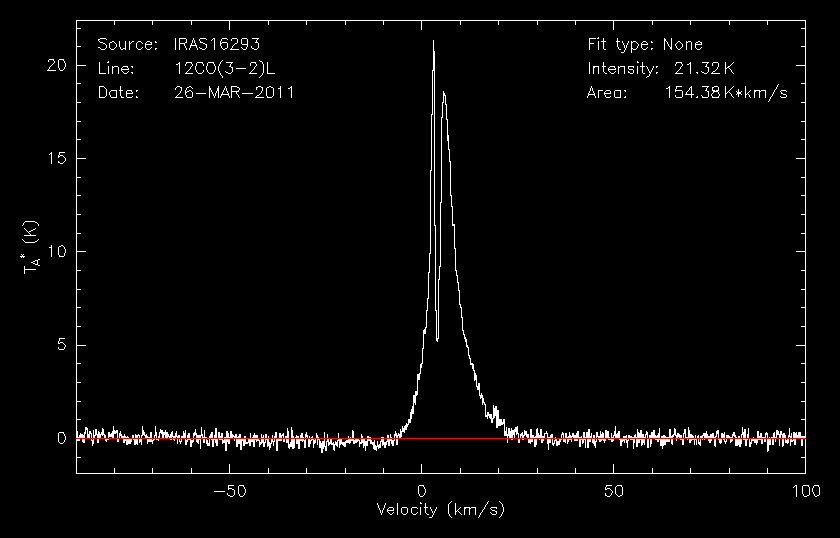

2011-03-26
1.88
53.0
21.32
154.38
6.952
7.24

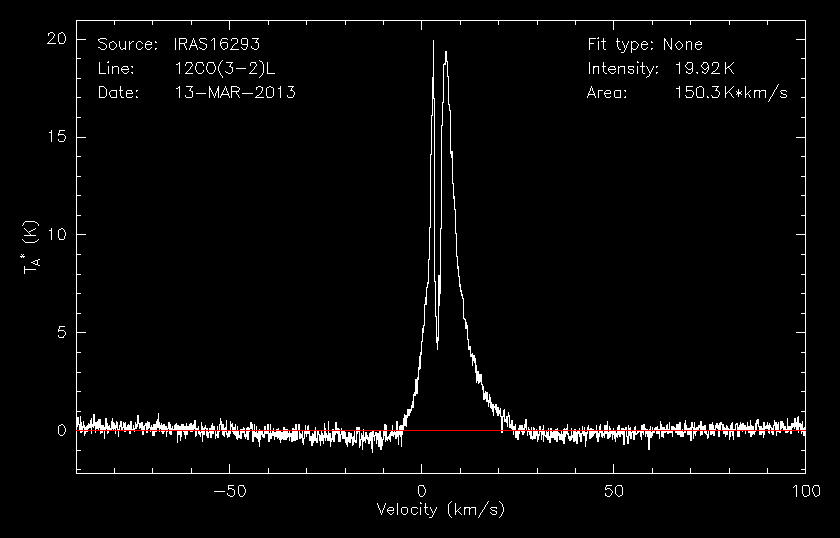

2013-03-13
0.66
31.8
19.92
150.30
6.791
7.54

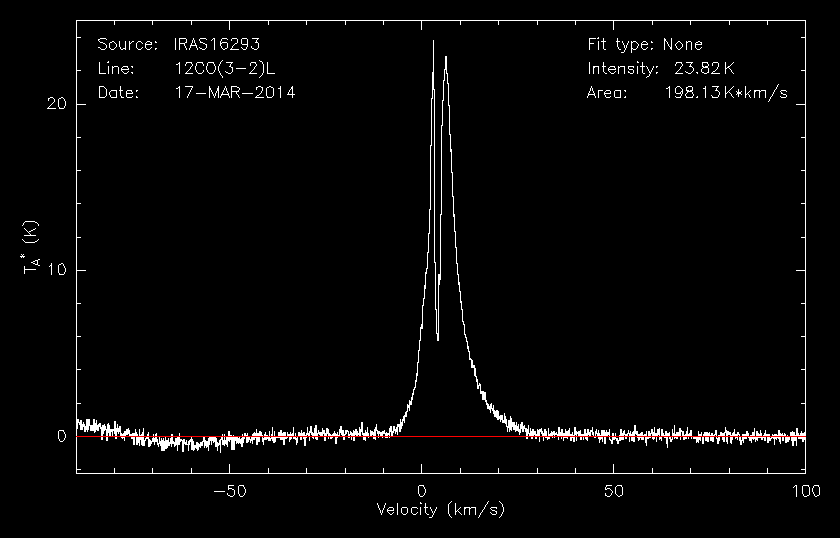

2014-03-17
0.47
54.0
23.82
198.14
6.702
8.32

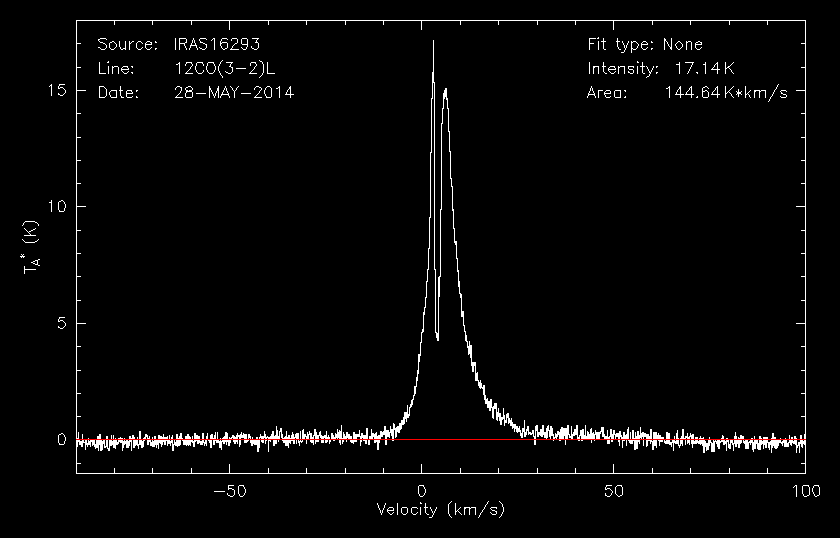

2014-05-28
0.36
60.1
17.14
144.64
7.421
8.44
2014-09-22
1.20
68.2
24.21
193.91
6.611
8.01
2015-06-24
1.04
46.1
24.51
190.68
6.565
7.78

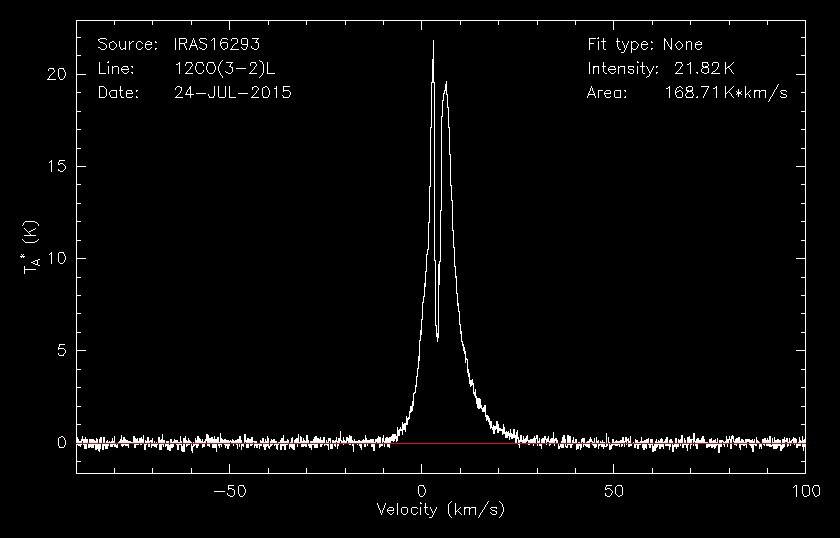

2015-07-24
1.29
73.3
21.83
168.72
6.057
7.73
2017-02-13
1.01
37.0
20.73
164.85
6.769
7.95

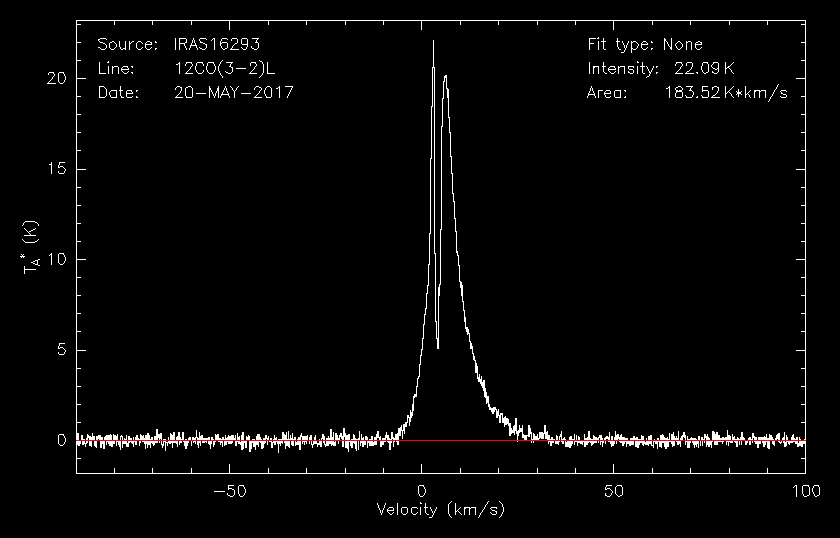

2017-05-20
1.43
67.3
22.10
183.53
7.372
8.31
