Source : IRAS16293

Line : 13CO(3-2)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

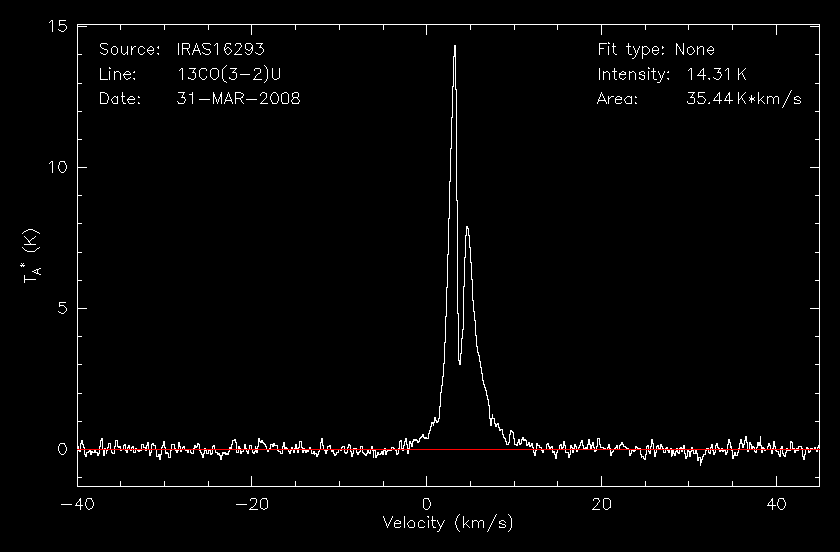

2008-03-31
0.72
65.8
14.32
35.44
4.084
2.48

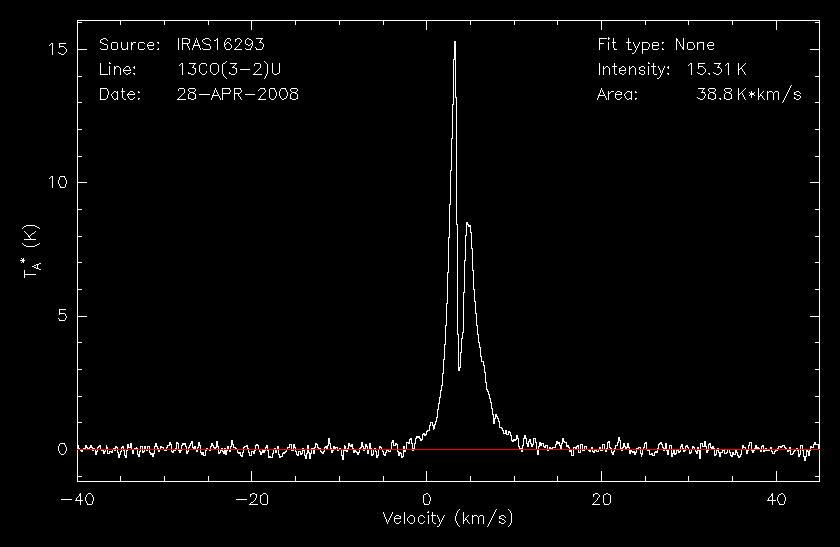

2008-04-28
0.66
56.3
15.32
38.80
4.248
2.53

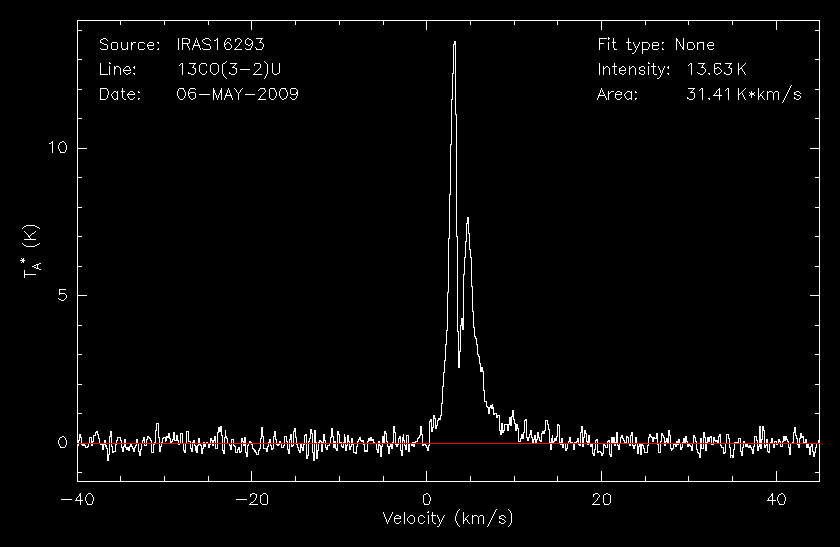

2009-05-06
1.91
63.4
13.63
31.41
4.368
2.30
2010-04-01
1.44
58.3
14.75
40.15
4.156
2.72

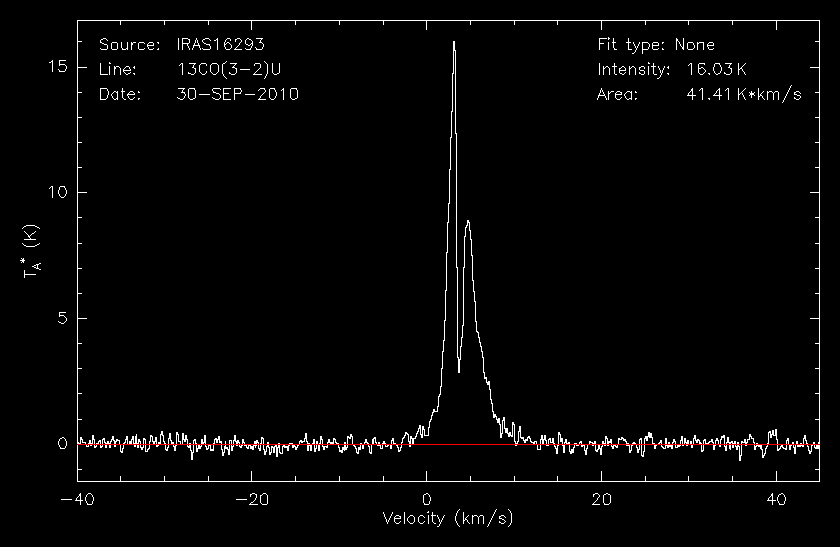

2010-09-30
0.96
32.3
16.03
41.42
4.084
2.58

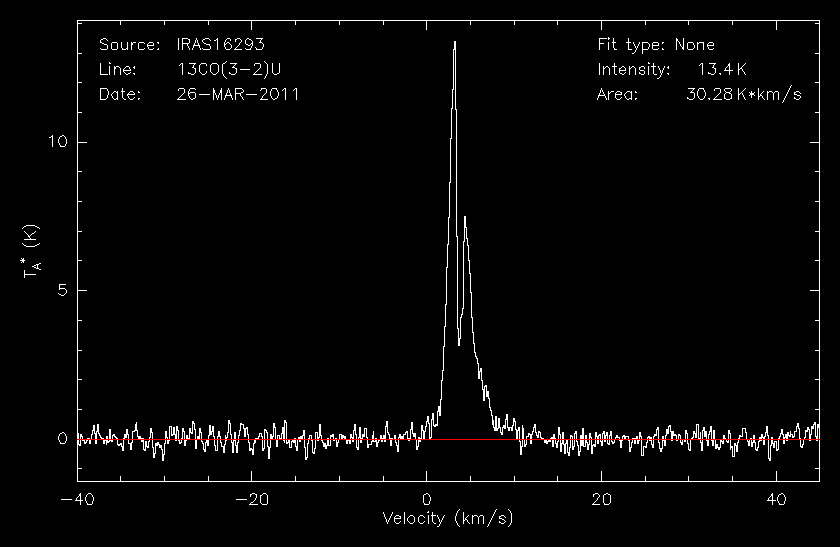

2011-03-26
1.66
43.7
13.40
30.28
4.004
2.26

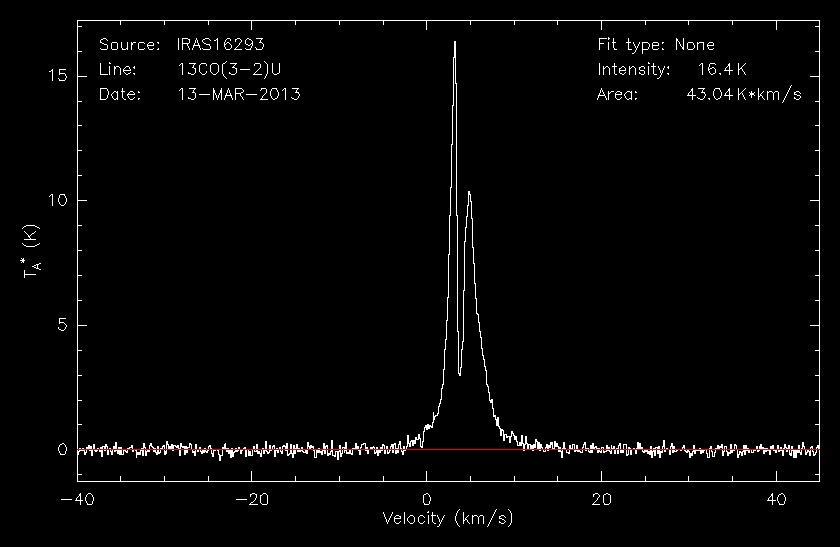

2013-03-13
0.60
40.0
16.41
43.04
4.275
2.62

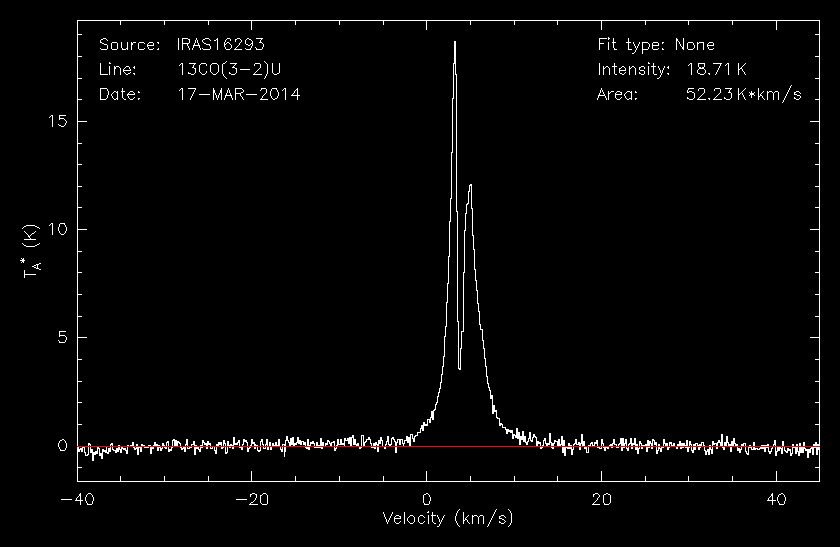

2014-03-17
0.83
61.4
18.71
52.24
4.231
2.79

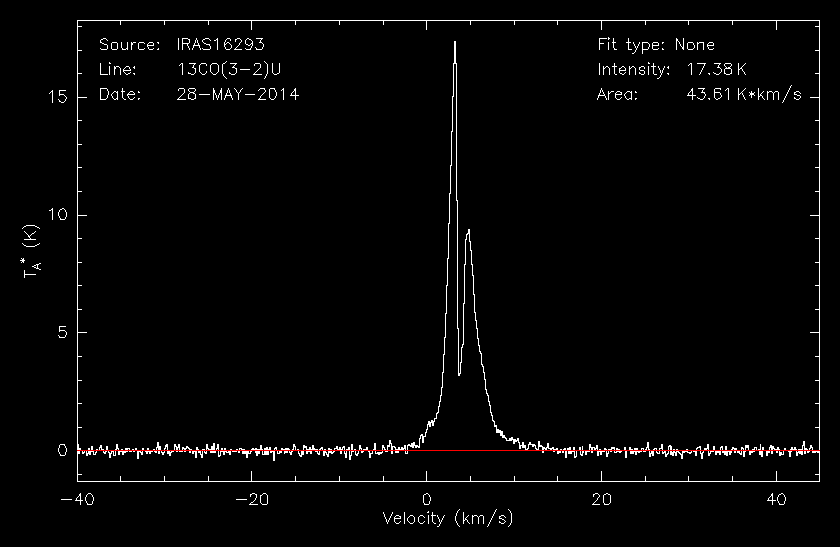

2014-05-28
0.27
52.9
17.38
43.62
4.080
2.51

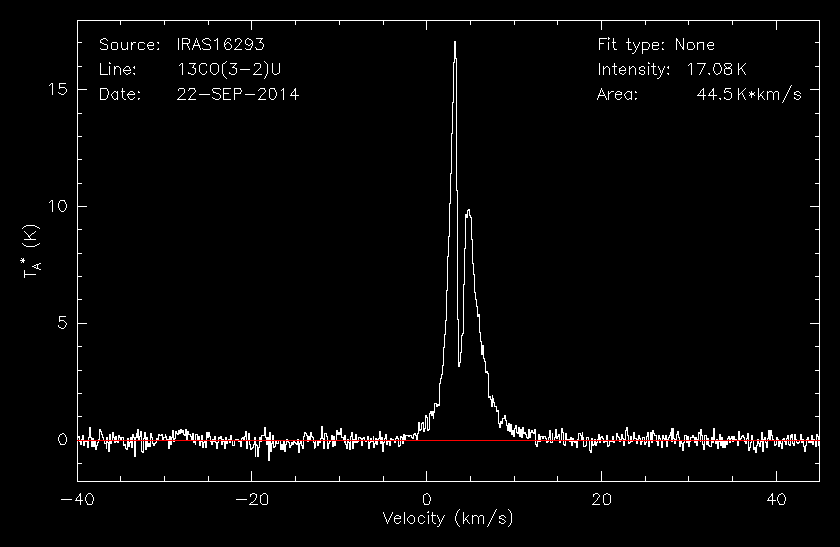

2014-09-22
1.39
75.7
17.08
44.51
4.247
2.61

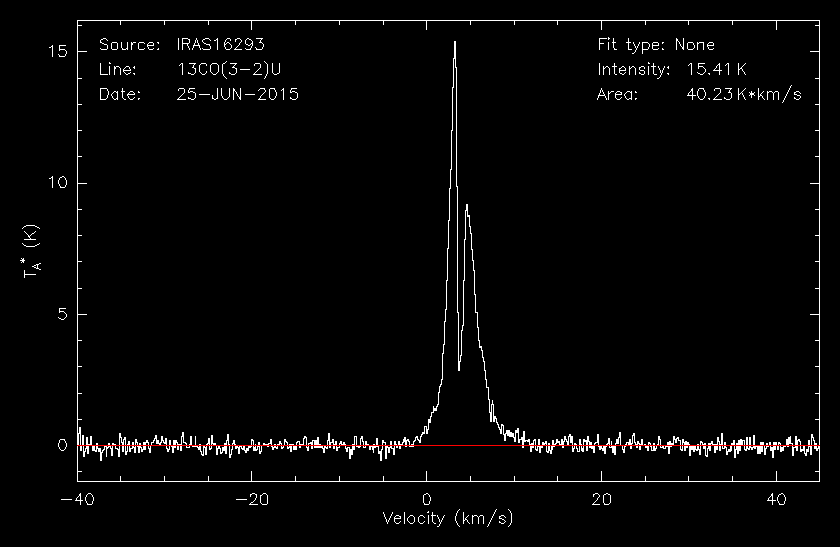

2015-06-25
0.87
53.7
15.41
40.23
4.113
2.61

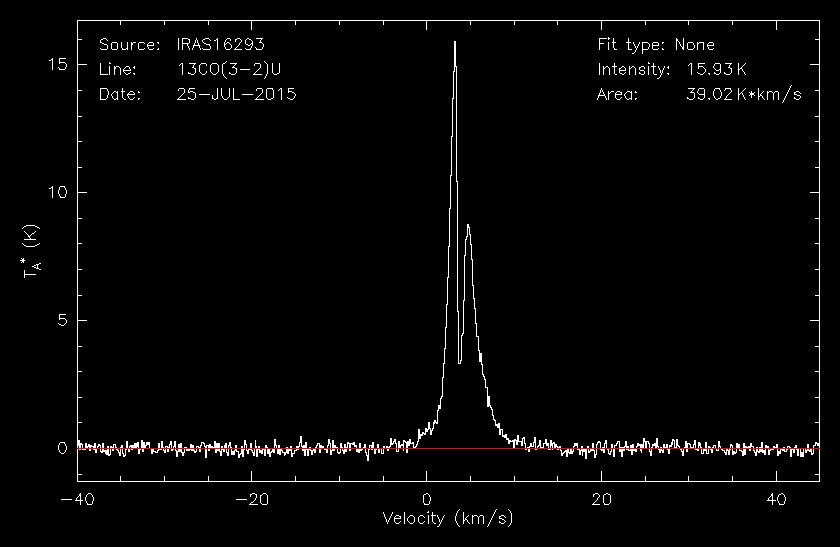

2015-07-25
0.74
58.0
15.94
39.02
4.079
2.45

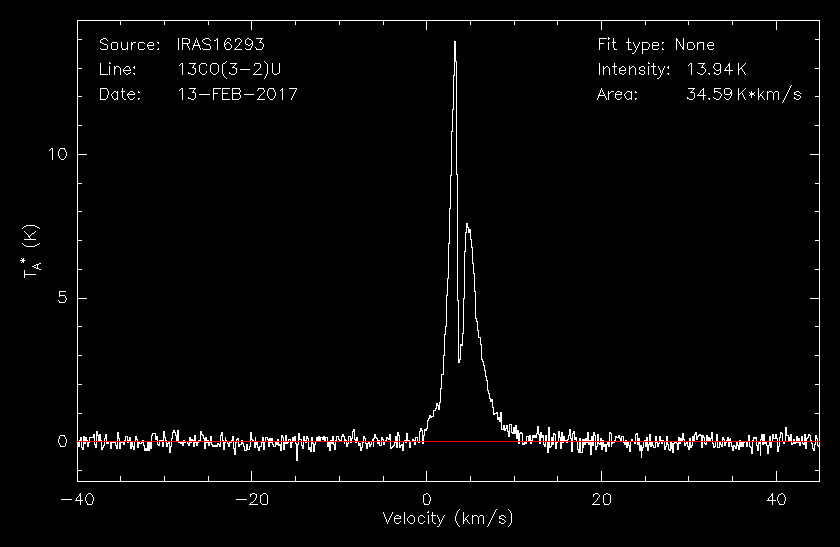

2017-02-13
0.84
44.2
13.95
34.60
4.245
2.48

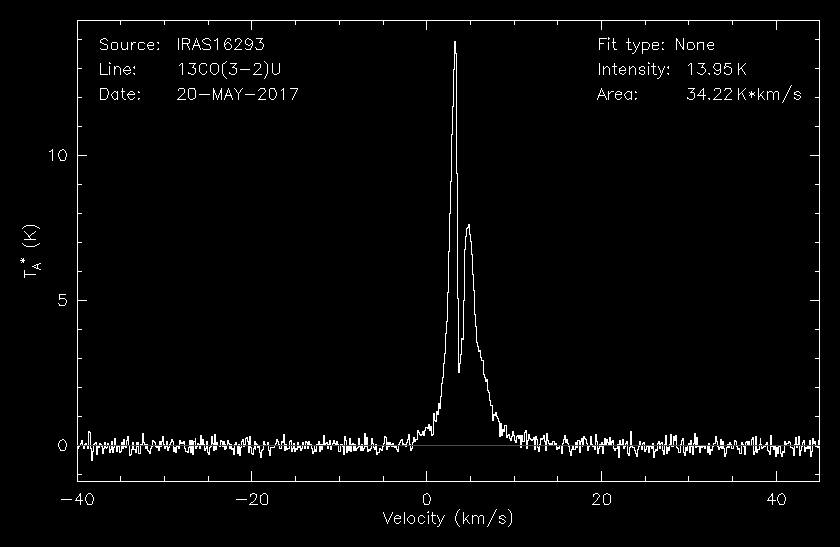

2017-05-20
1.07
74.9
13.96
34.22
4.188
2.45
