Source : IRAS16293

Line : HCO+(4-3)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

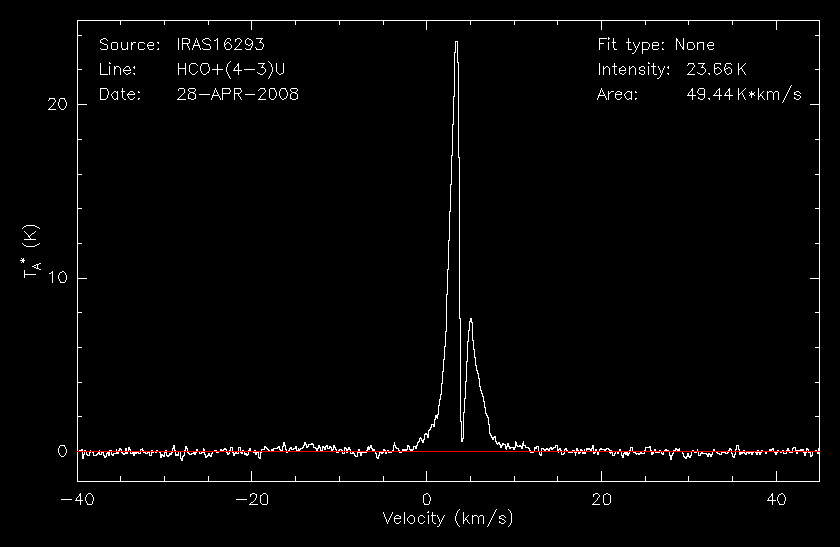

2008-04-28
0.45
61.6
23.67
49.45
3.668
2.09

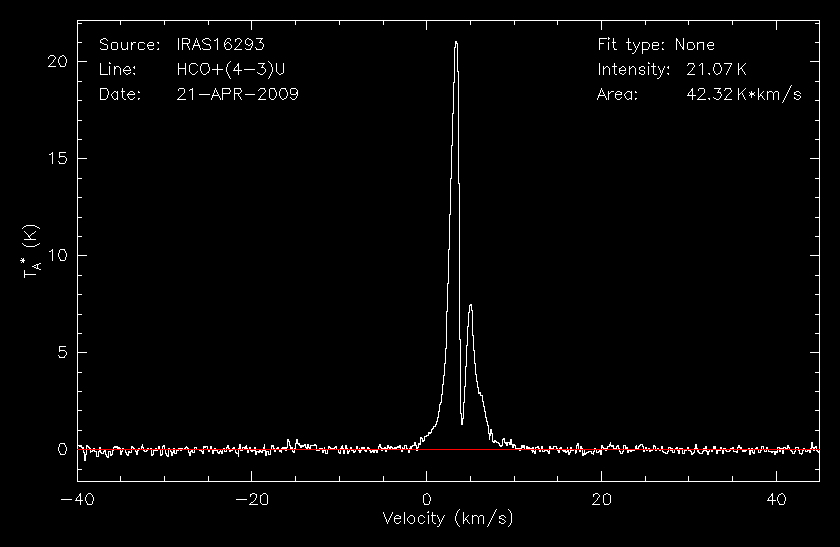

2009-04-21
0.87
67.0
21.07
42.33
3.659
2.01

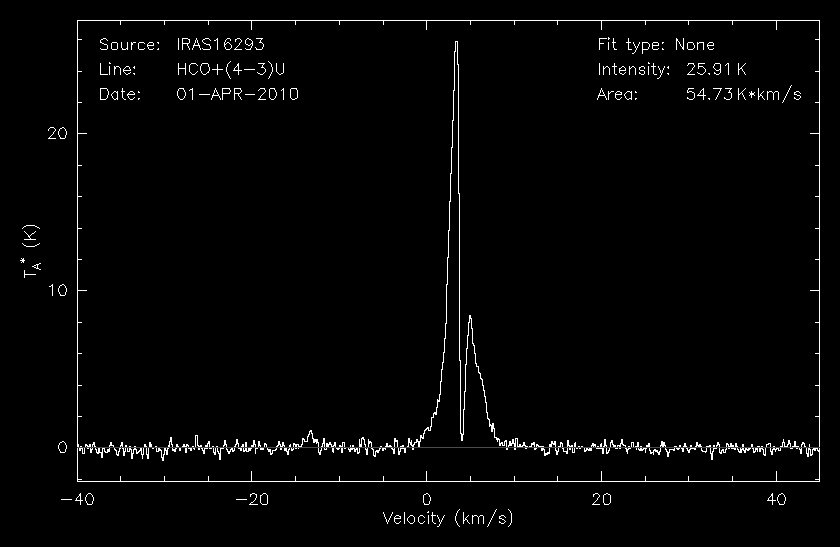

2010-04-01
1.78
51.8
25.91
54.73
3.652
2.11

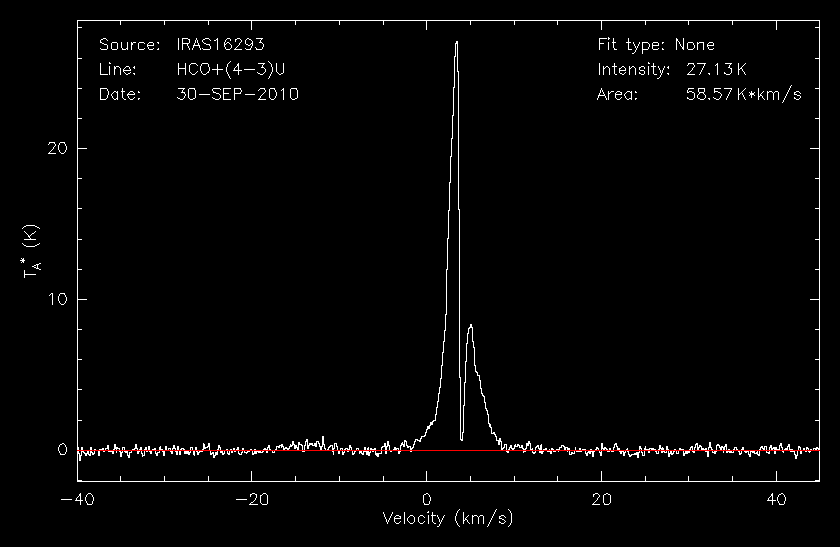

2010-09-30
1.22
37.8
27.13
58.58
3.537
2.16
2011-03-26
1.81
50.3
19.96
39.62
3.442
1.99

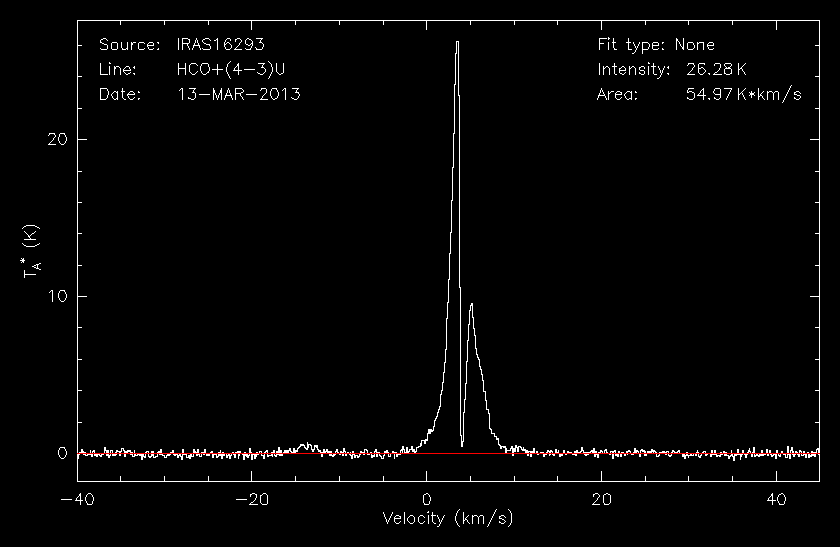

2013-03-13
0.66
34.3
26.28
54.98
3.864
2.09

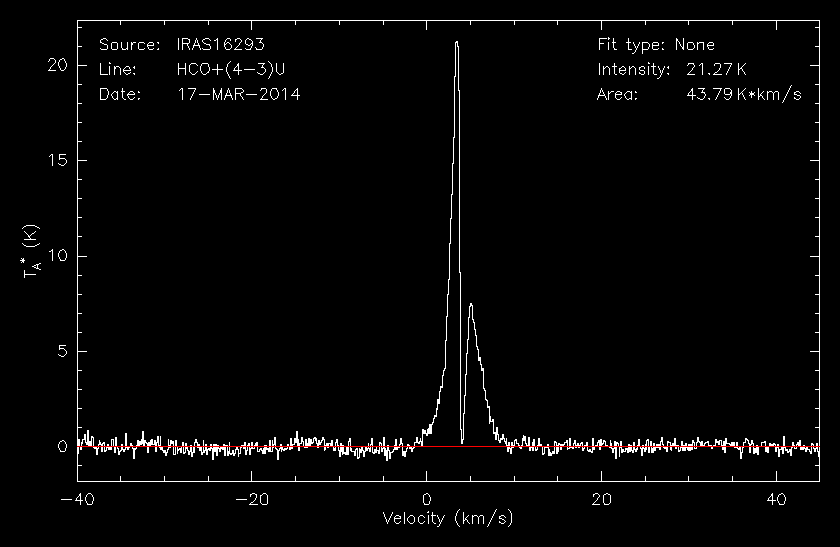

2014-03-17
0.92
56.3
21.27
43.80
3.965
2.06

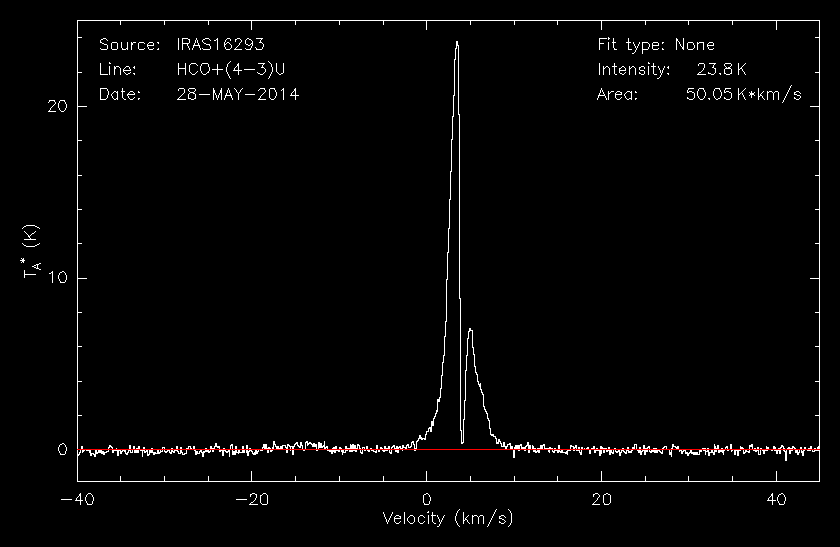

2014-05-28
0.36
58.0
23.81
50.05
3.562
2.10

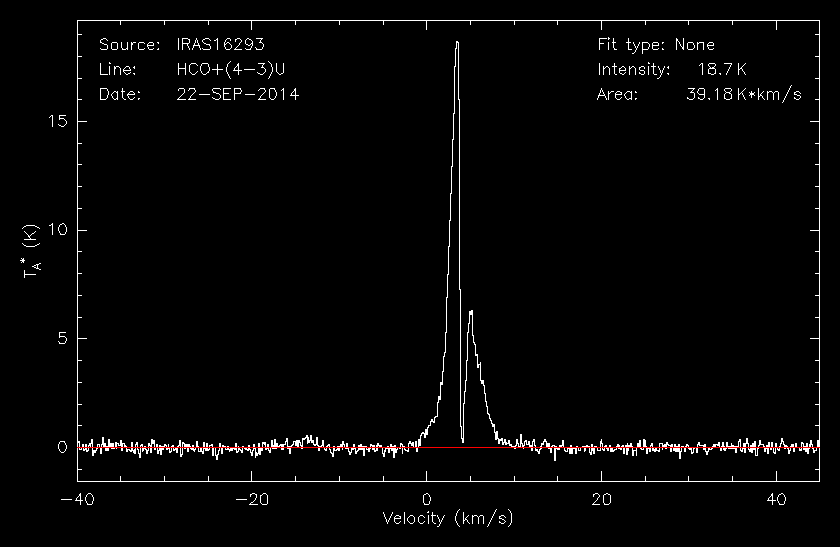

2014-09-22
1.23
70.4
18.70
39.19
3.825
2.10

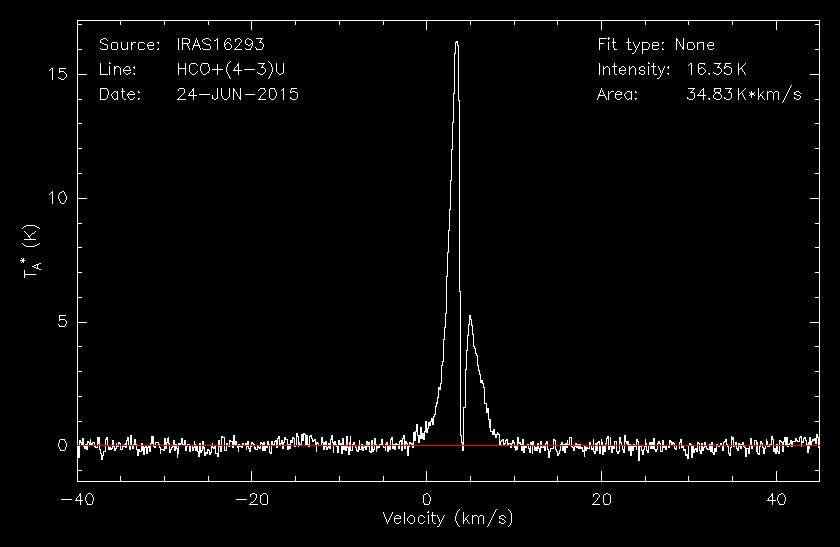

2015-06-24
1.05
48.3
16.35
34.83
3.544
2.13
2015-07-24
1.23
75.7
14.99
33.85
3.755
2.26

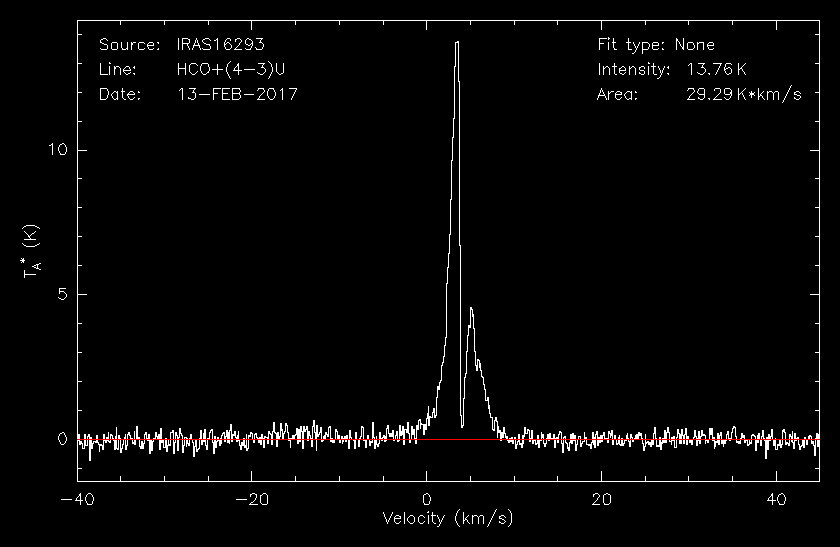

2017-02-13
1.01
39.2
13.77
29.30
3.506
2.13

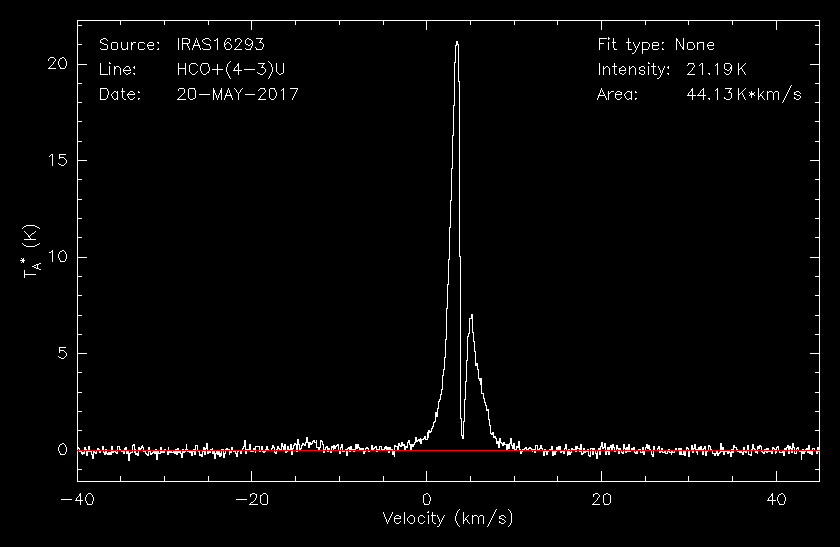

2017-05-20
1.25
69.9
21.19
44.13
3.665
2.08
