Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : IRC+10216

Line : 13CO(3-2)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum
2008-03-31
0.75
43.4
3.74
97.29
-25.886
26.02
2008-04-29
1.10
37.7
3.47
89.27
-25.897
25.70

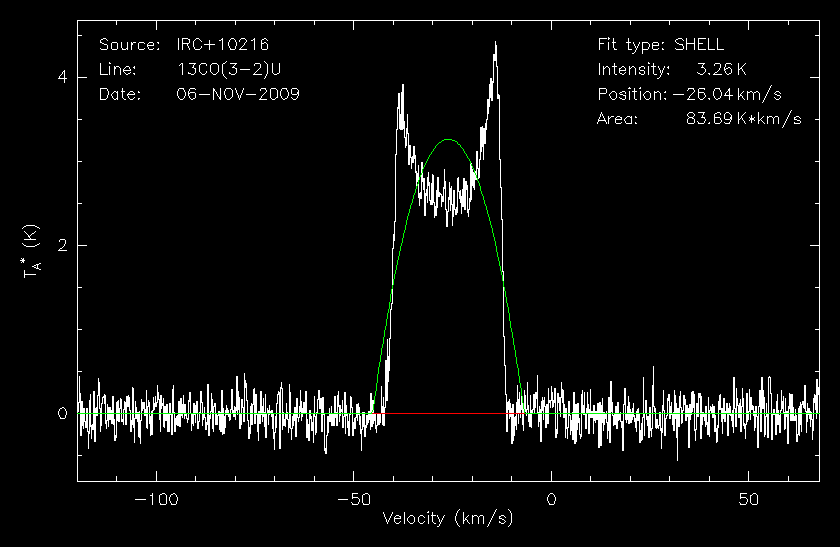

2009-11-06
1.07
43.4
3.26
83.69
-26.032
25.63
2010-02-11
0.86
53.4
3.31
85.04
-25.975
25.70

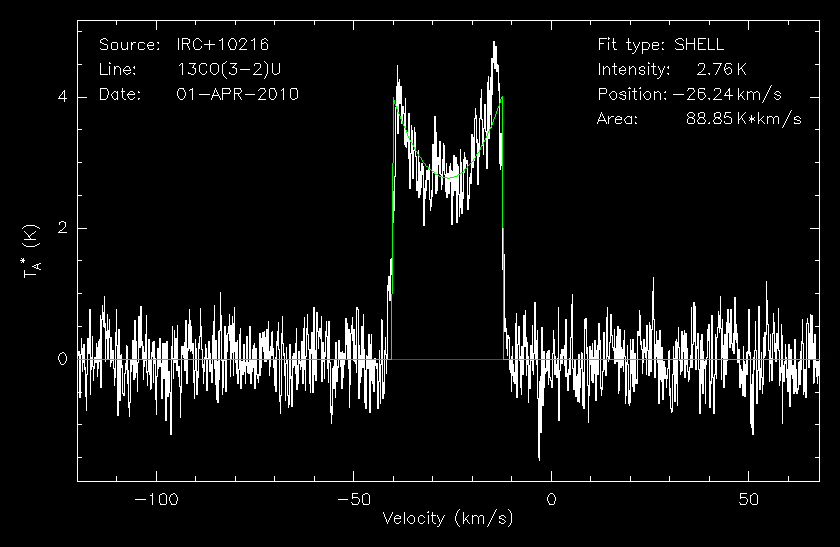

2010-04-01
1.89
38.2
2.76
88.85
-26.234
32.15
2010-05-31
0.51
37.2
3.94
101.79
-25.907
25.83
2010-12-08
1.23
49.6
3.18
99.81
-26.234
31.39
2012-01-16
0.55
45.8
2.31
71.86
-25.696
31.14
2012-04-20
1.82
31.2
3.23
103.99
-26.133
32.23

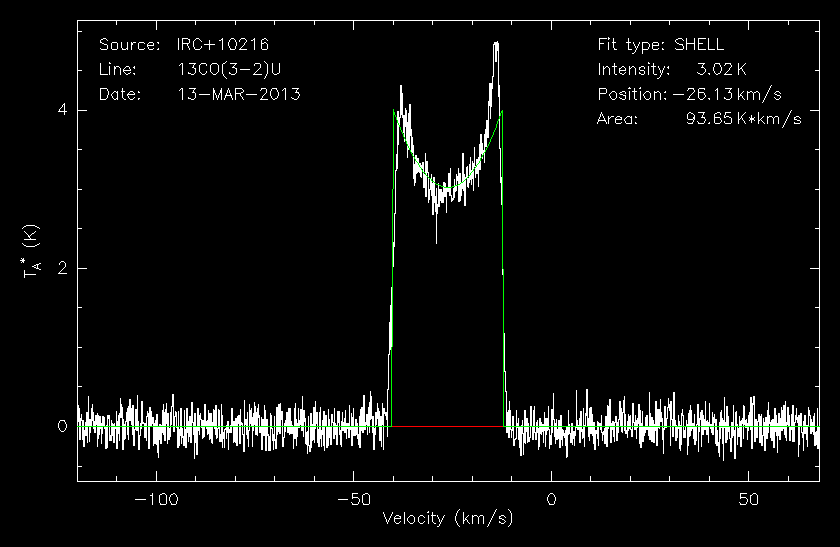

2013-03-13
0.67
42.4
3.02
93.66
-26.128
30.98

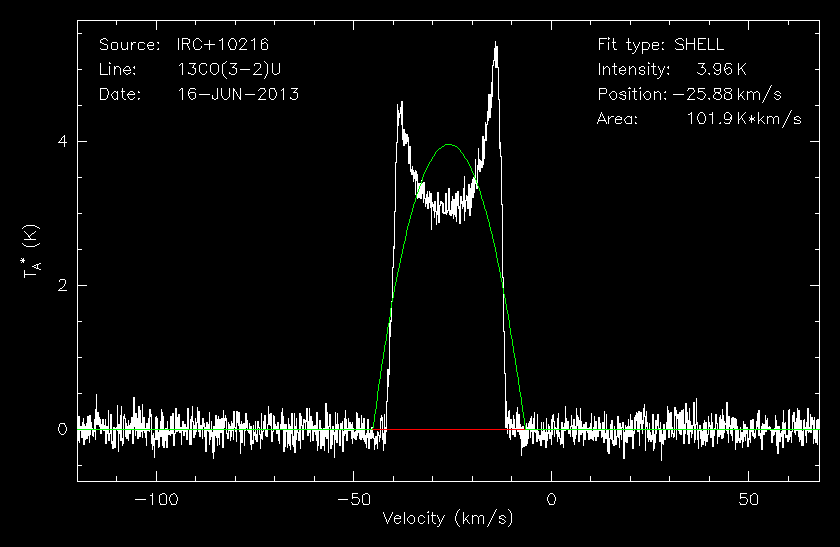

2013-06-16
0.49
39.9
3.96
101.90
-25.878
25.71

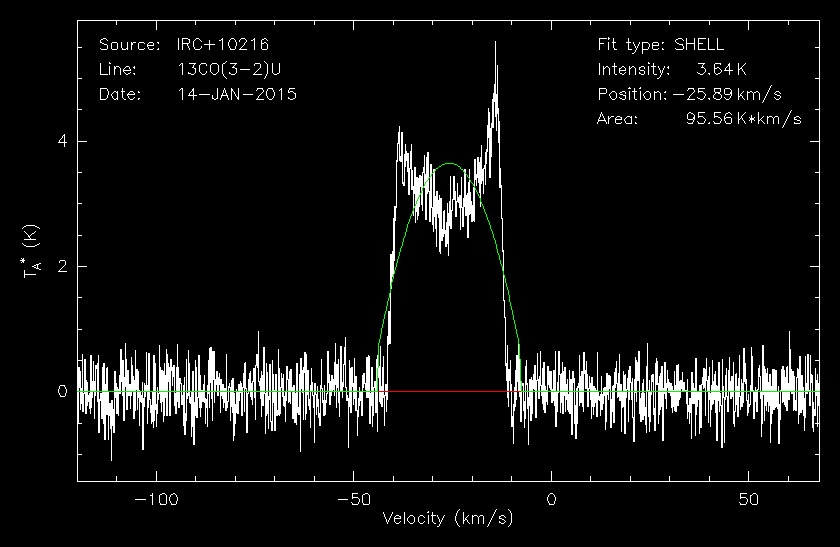

2015-01-14
2.17
53.2
3.65
95.57
-25.881
26.20

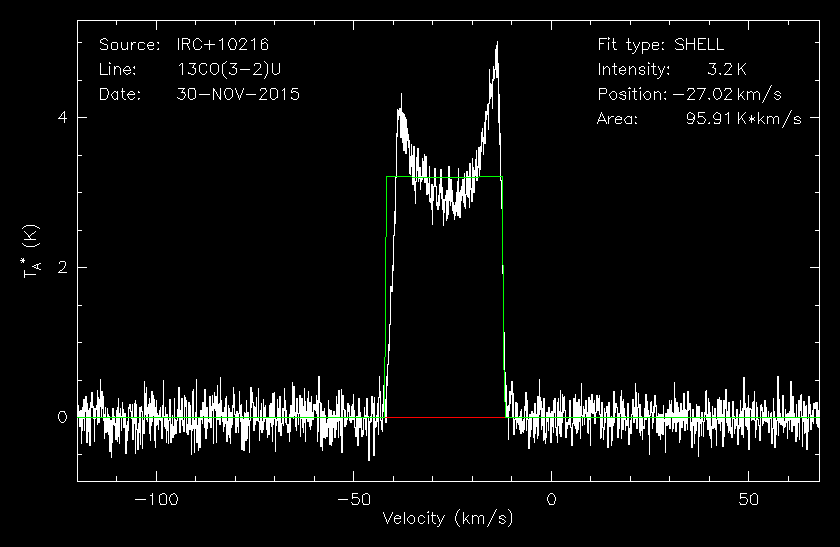

2015-11-30
1.13
53.5
3.21
95.91
-27.018
29.92

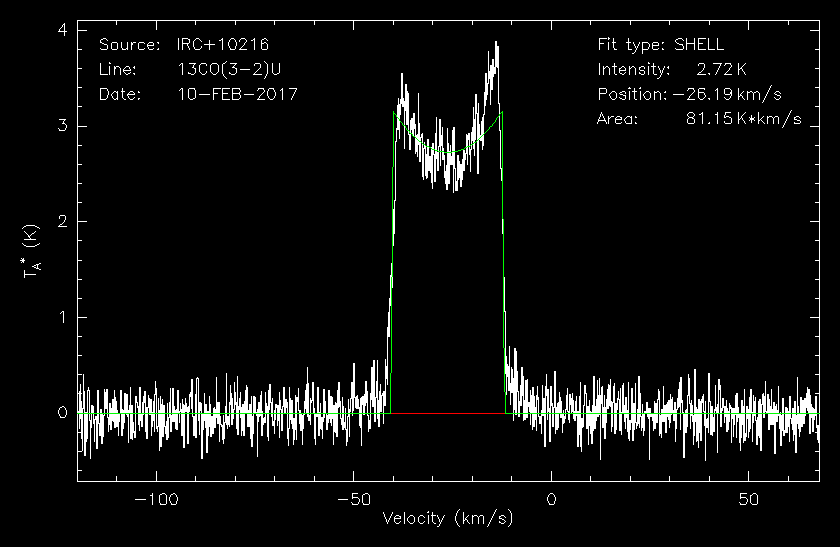

2017-02-10
1.22
46.9
2.73
81.16
-26.183
29.77
