Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : IRC+10216

Line : CS(7-6)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

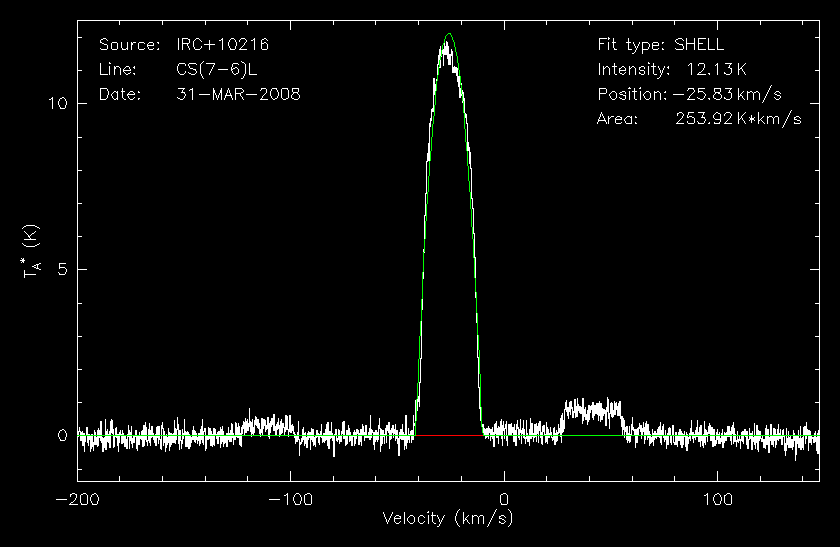

2008-03-31
0.94
45.2
12.14
253.94
-25.824
20.93

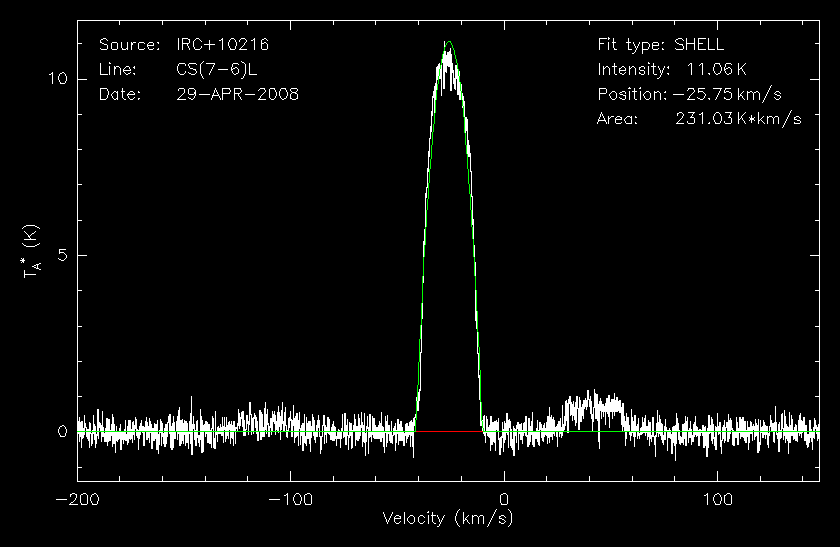

2008-04-29
1.25
39.3
11.06
231.04
-25.745
20.88

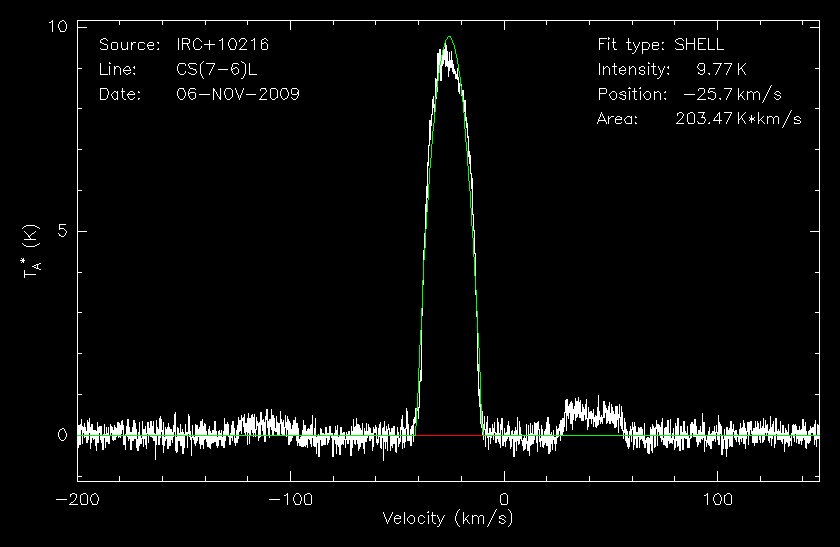

2009-11-06
1.18
44.8
9.77
203.47
-25.691
20.82
2010-02-11
0.91
53.7
9.87
205.01
-25.661
20.78

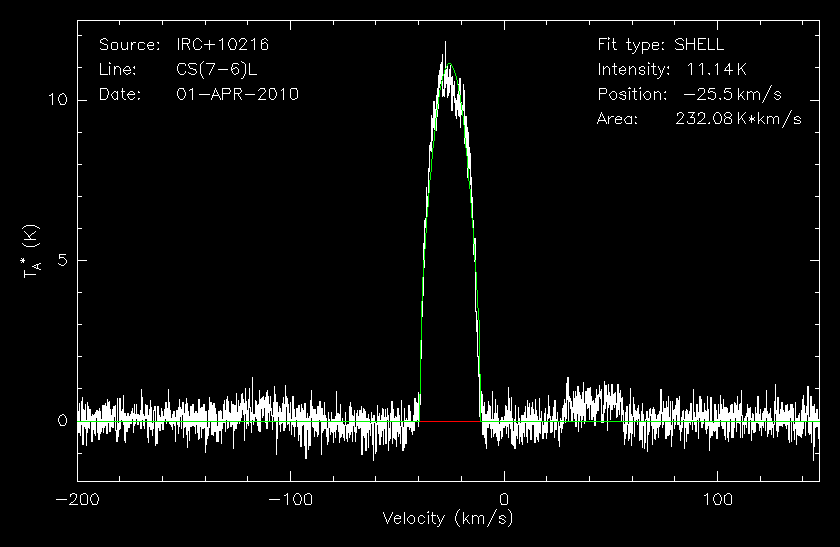

2010-04-01
2.01
39.9
11.15
232.09
-25.496
20.82
2010-05-31
0.53
39.8
11.06
228.12
-25.658
20.62

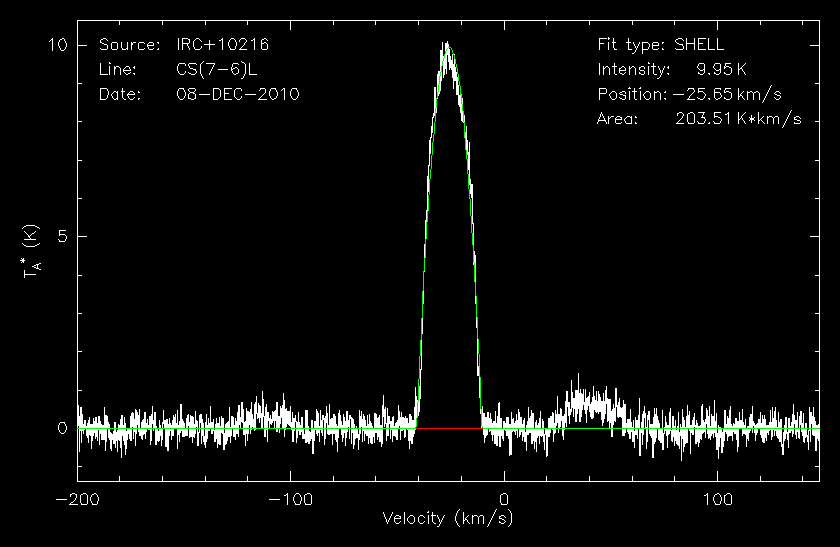

2010-12-08
1.47
48.3
9.96
203.52
-25.643
20.44
2012-01-16
0.80
47.1
8.53
177.49
-25.667
20.81

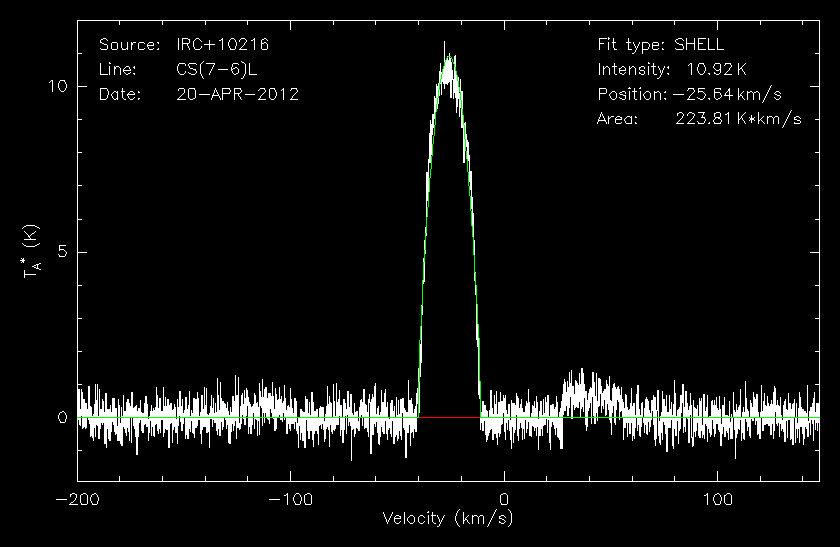

2012-04-20
1.81
33.2
10.93
223.82
-25.634
20.49

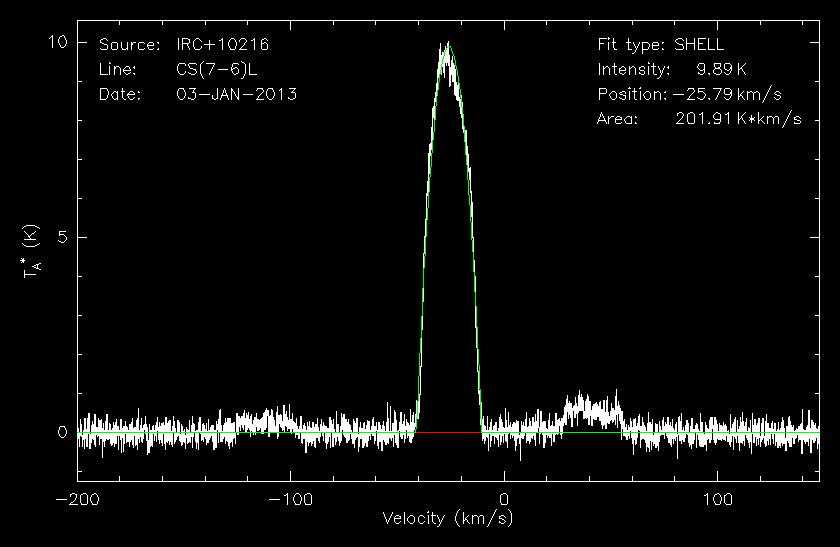

2013-01-03
0.86
53.2
9.89
201.91
-25.786
20.41

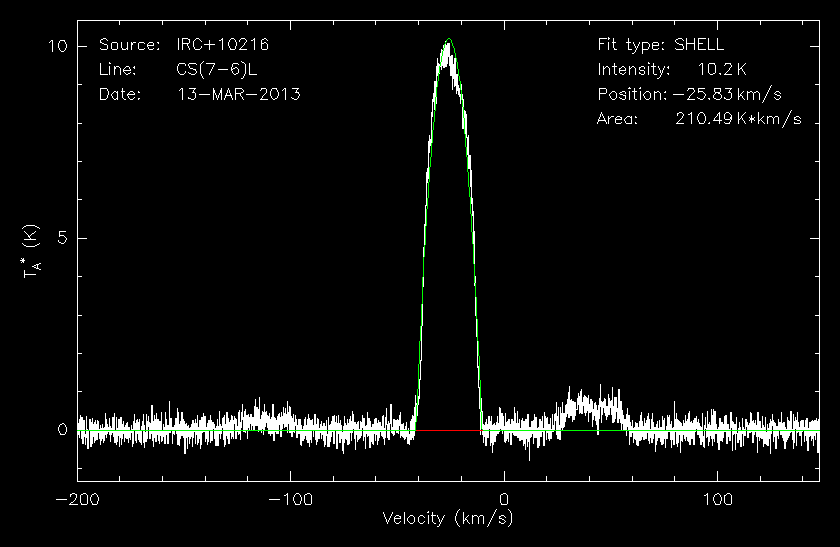

2013-03-13
0.77
43.9
10.20
210.49
-25.823
20.63

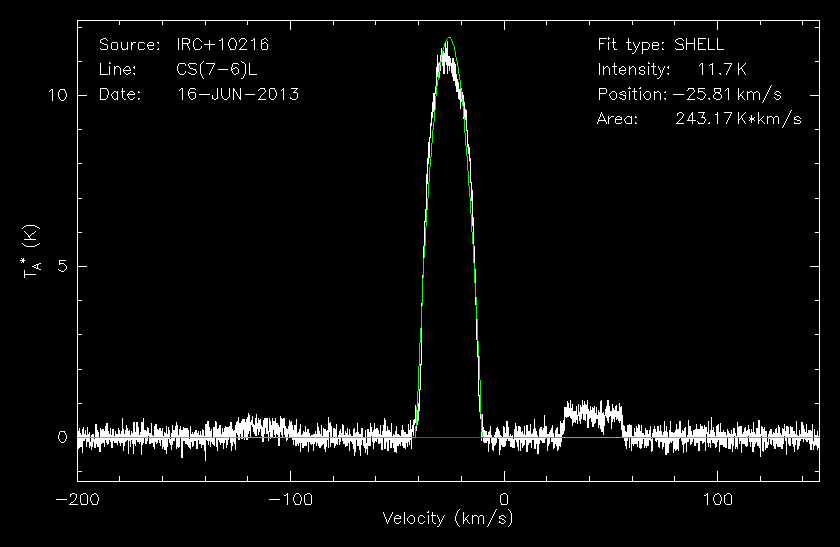

2013-06-16
0.50
41.5
11.70
243.18
-25.808
20.78

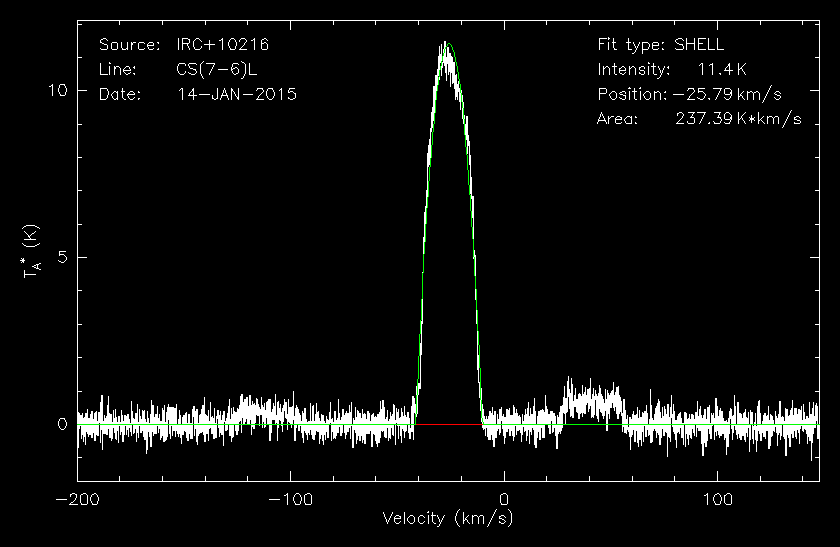

2015-01-14
2.29
52.7
11.41
237.39
-25.787
20.81

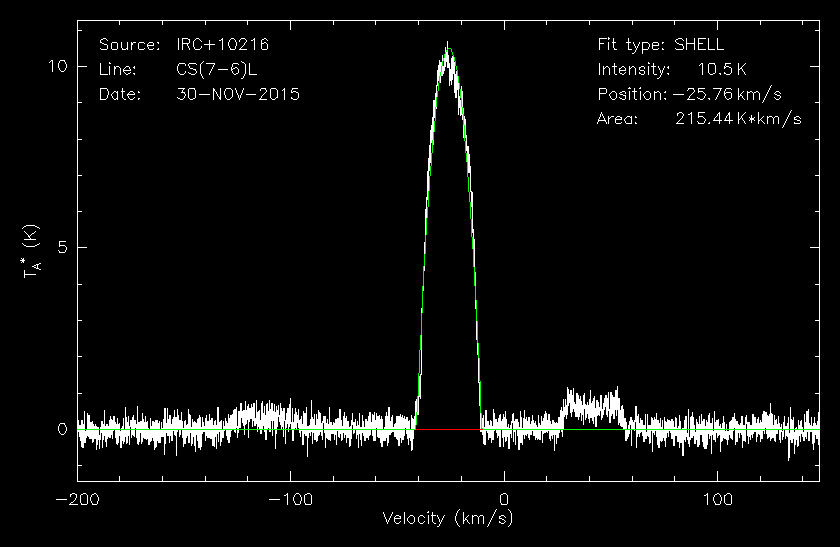

2015-11-30
1.44
53.1
10.51
215.44
-25.751
20.50
2017-02-10
1.48
45.6
10.06
210.52
-25.731
20.92
