Atacama Pathfinder EXperiment APEX
APEX-2 (345 GHz)
MPIfR Bonn   ESO   Onsala Space Observatory
  APEX TWIKI CONTACT SEARCH HELP NEWS DISCLAIMER

Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : OMC1

Line : HCN(4-3)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

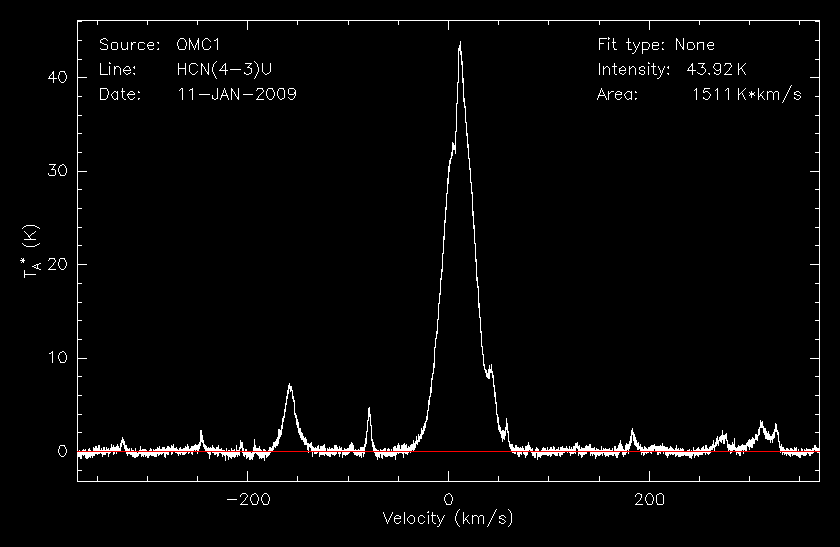

2009-01-11
1.70
55.4
43.92
1511.77
12.039
34.42

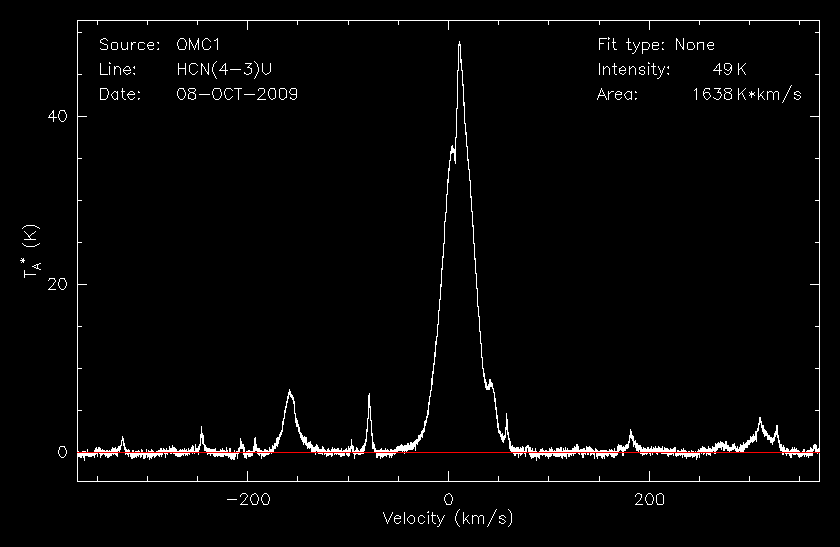

2009-10-08
1.66
55.4
49.01
1638.78
11.311
33.44

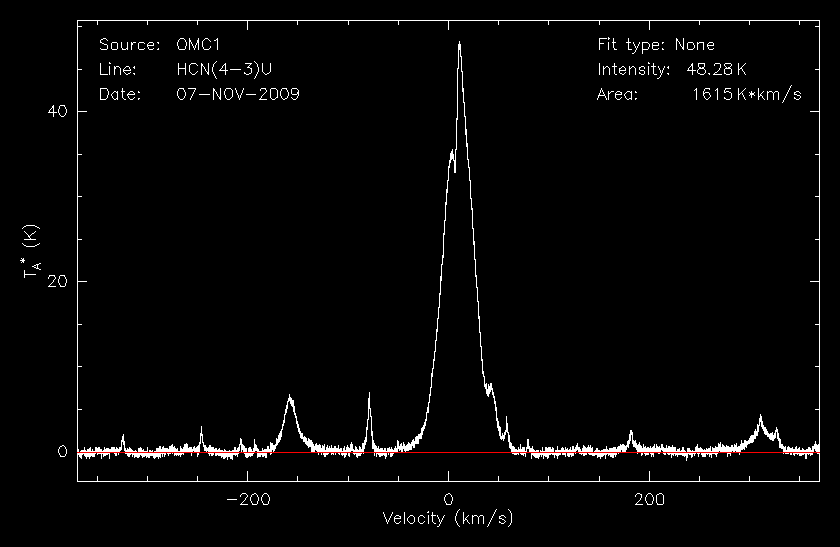

2009-11-07
1.99
54.2
48.29
1615.37
10.899
33.45

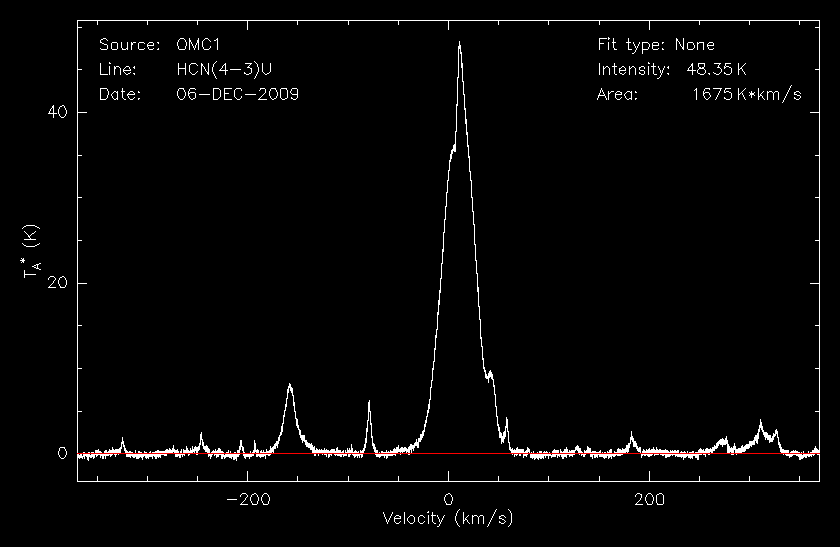

2009-12-06
0.92
34.7
48.35
1675.62
11.731
34.65

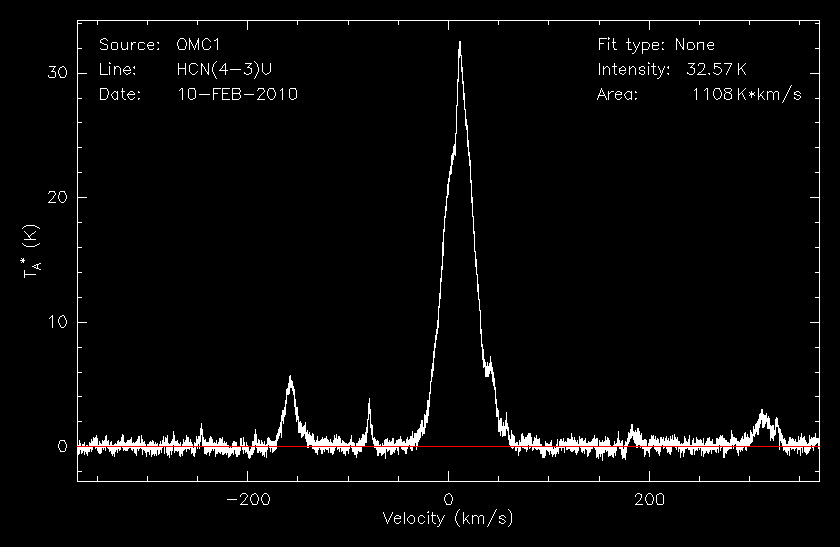

2010-02-10
1.41
37.6
32.58
1108.04
12.036
34.01

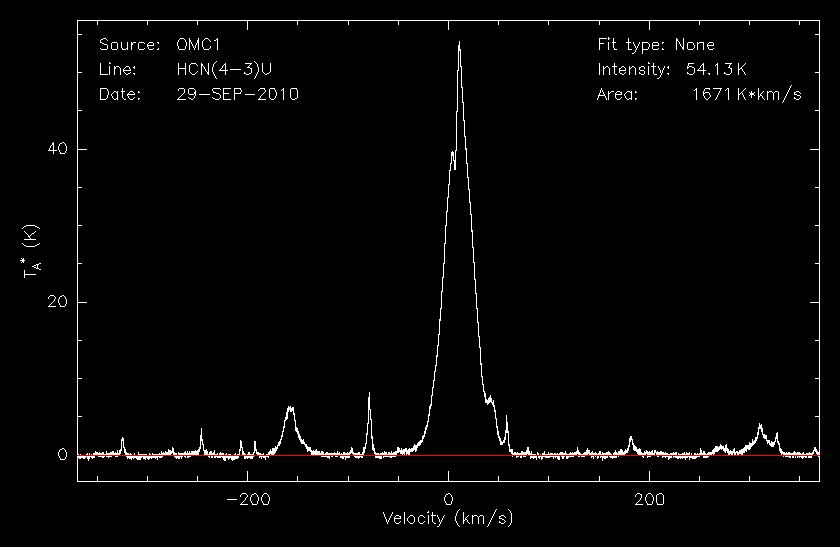

2010-09-29
1.07
59.6
54.14
1671.37
11.179
30.87

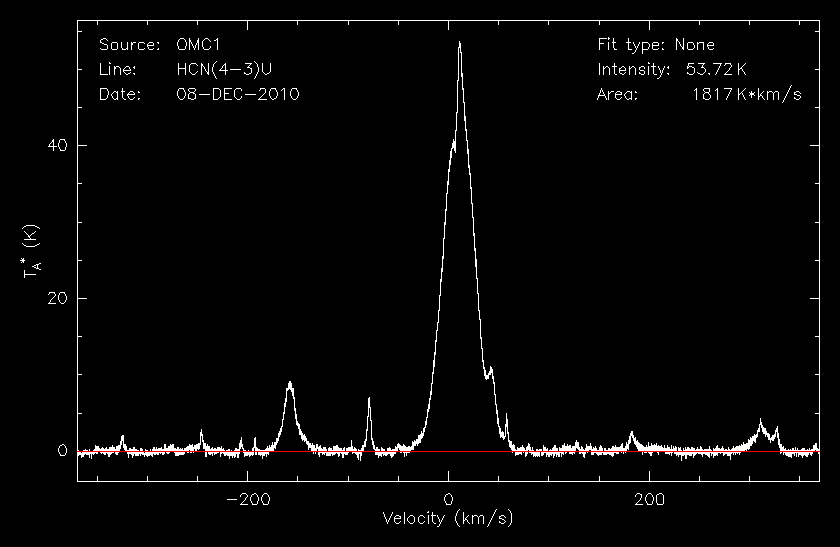

2010-12-08
1.60
35.6
53.72
1817.76
11.952
33.84

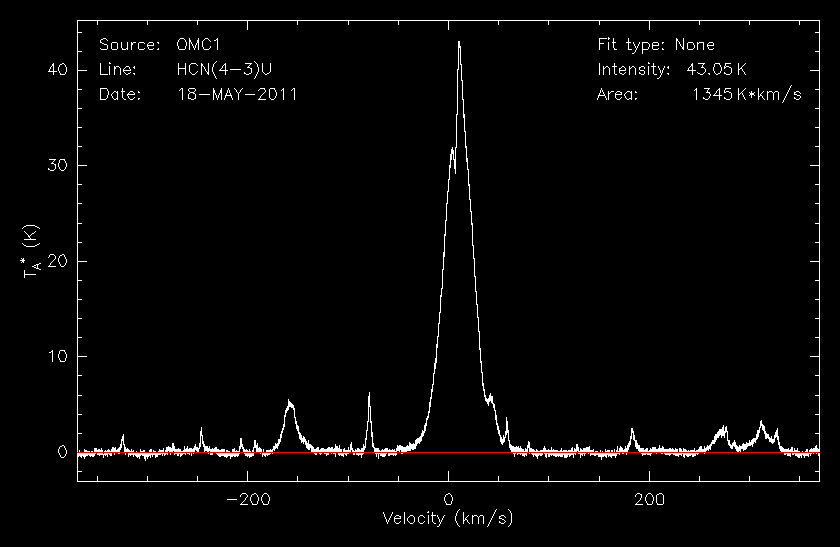

2011-05-18
1.40
59.4
43.05
1345.86
10.971
31.26

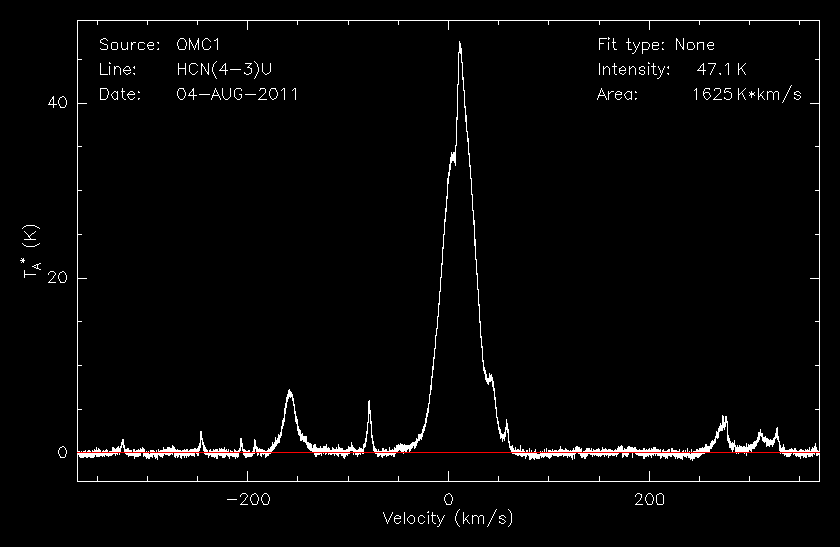

2011-08-04
1.03
48.0
47.11
1625.07
11.503
34.50

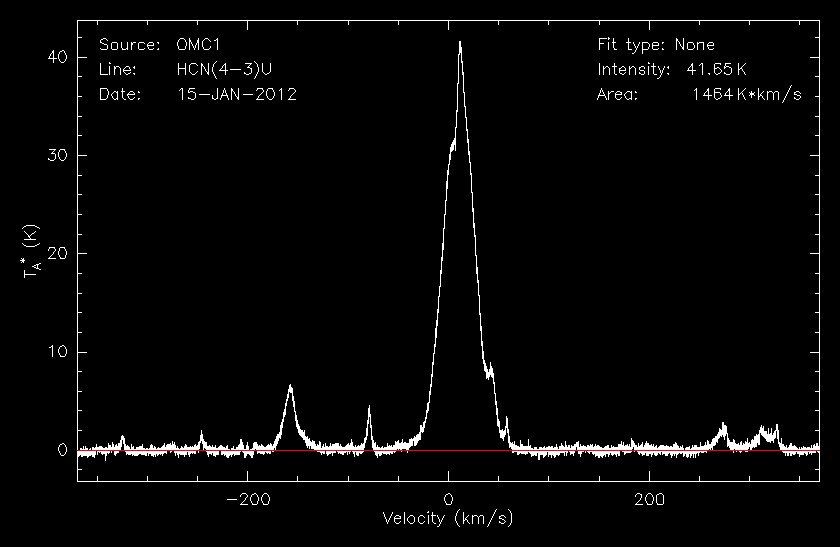

2012-01-15
1.29
41.9
41.66
1464.28
11.503
35.15

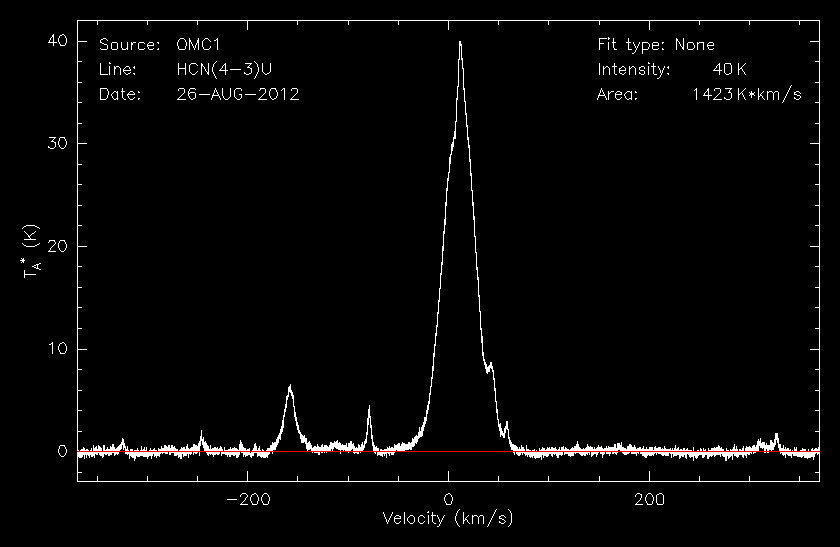

2012-08-26
1.85
64.7
40.00
1423.39
11.834
35.58
2012-09-21
0.48
53.6
44.52
1504.82
11.653
33.80

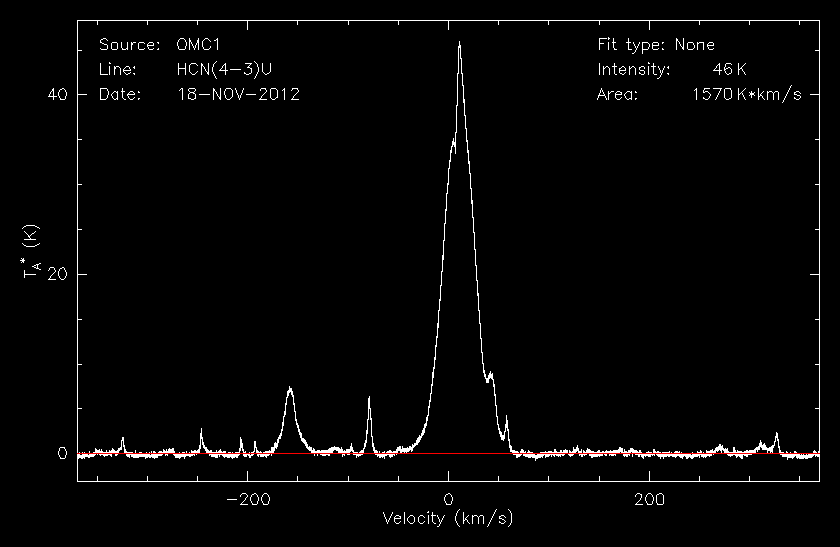

2012-11-18
0.98
63.8
46.01
1570.56
11.770
34.14

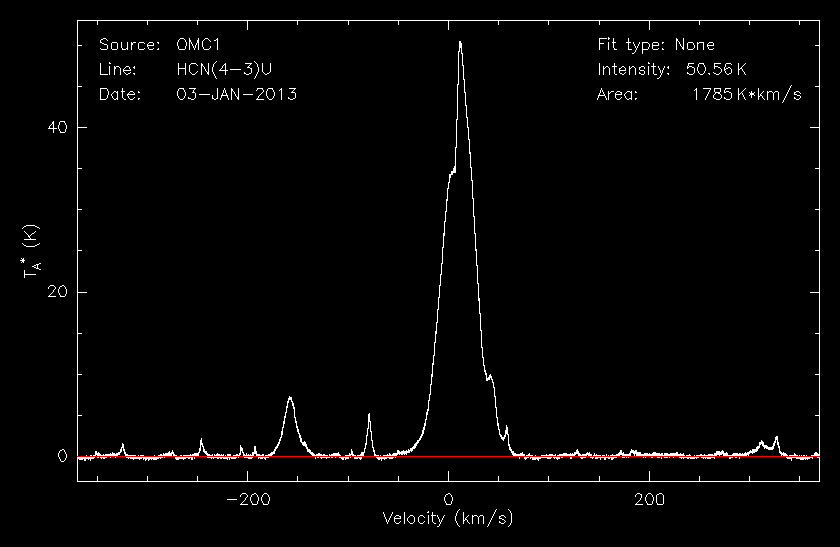

2013-01-03
1.11
52.4
50.56
1785.36
11.795
35.31
2013-01-05
1.58
72.2
47.83
1645.28
12.114
34.39

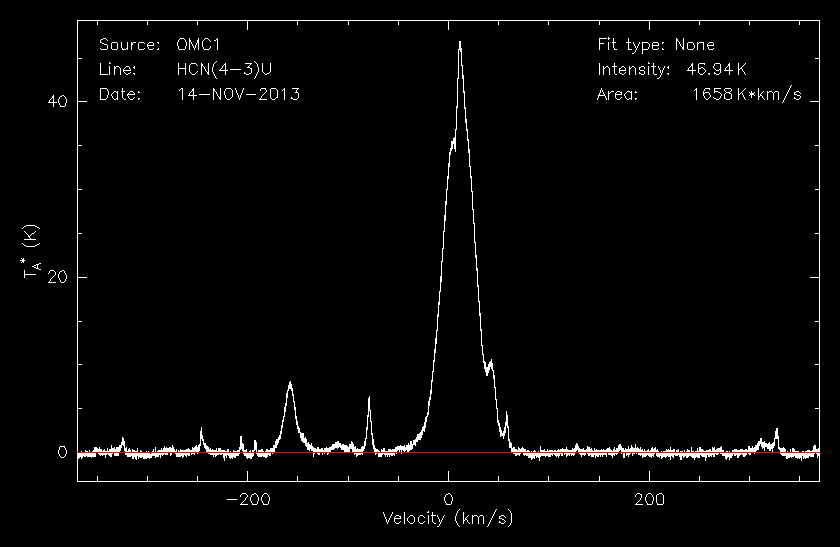

2013-11-14
1.87
59.5
46.94
1658.18
11.969
35.32
2013-11-29
0.88
44.1
48.38
1676.23
11.524
34.65

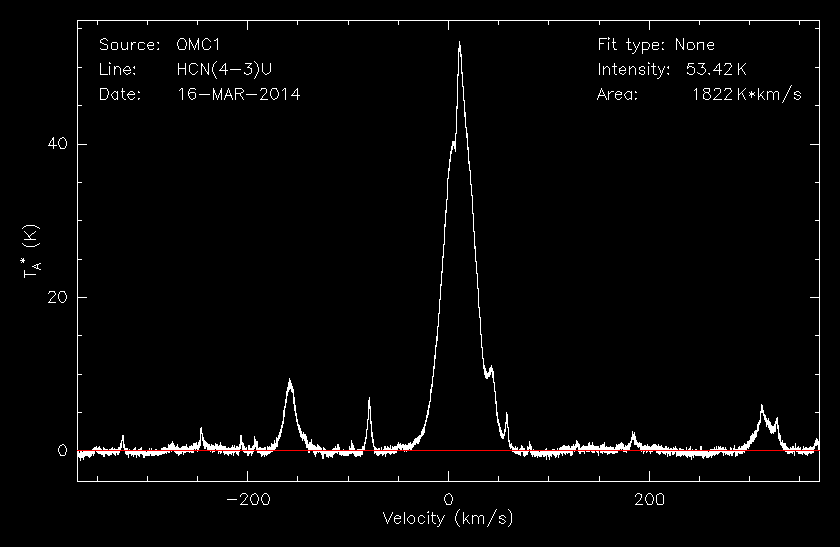

2014-03-16
1.23
44.6
53.43
1822.67
11.958
34.12
2014-04-21
1.39
65.6
59.90
1984.99
11.862
33.14
2014-08-22
1.28
63.9
45.21
1593.85
11.848
35.25

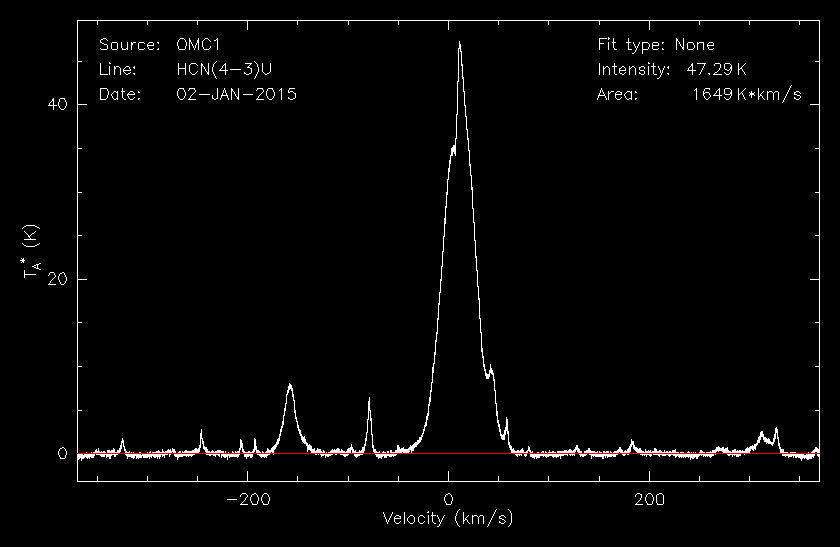

2015-01-02
1.14
63.8
47.30
1649.17
12.014
34.87

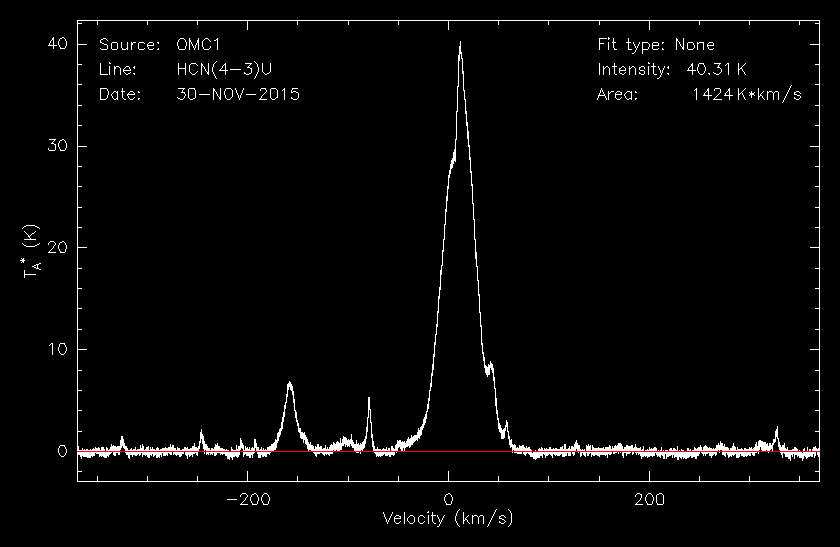

2015-11-30
1.62
56.2
40.31
1424.80
11.722
35.35

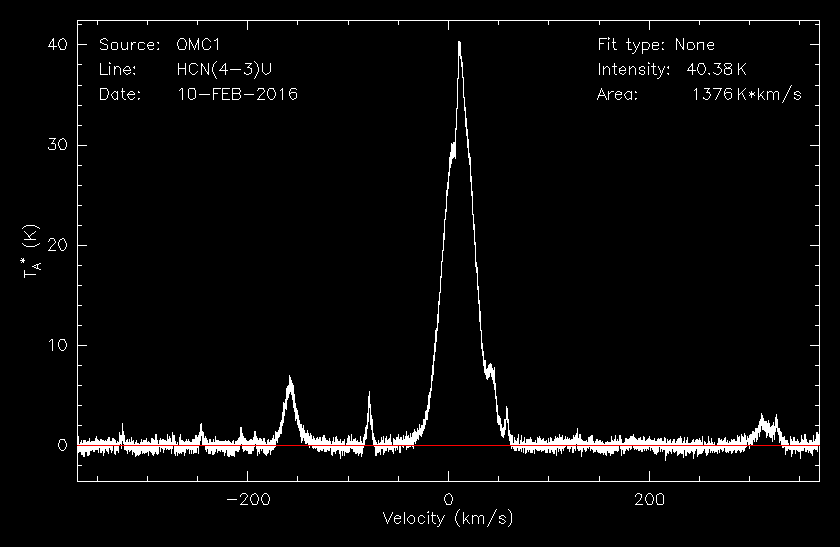

2016-02-10
2.36
35.4
40.39
1376.77
11.945
34.09

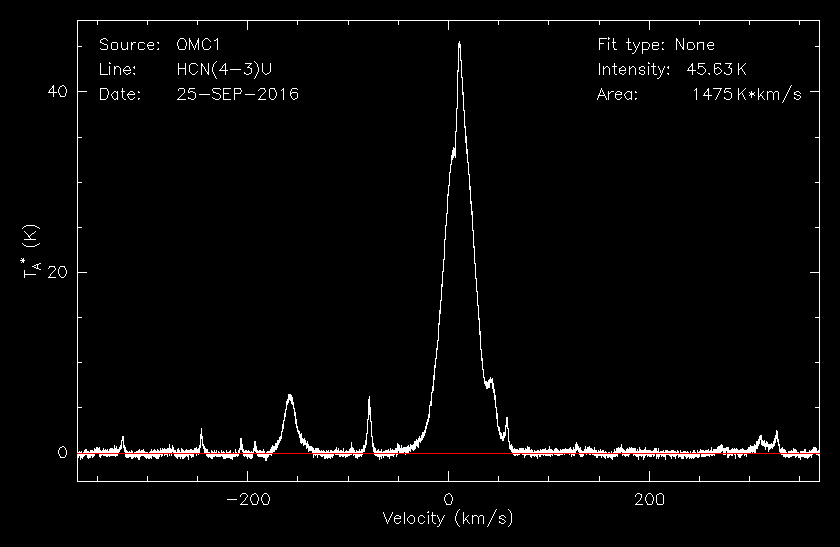

2016-09-25
1.10
43.0
45.63
1475.05
12.042
32.33

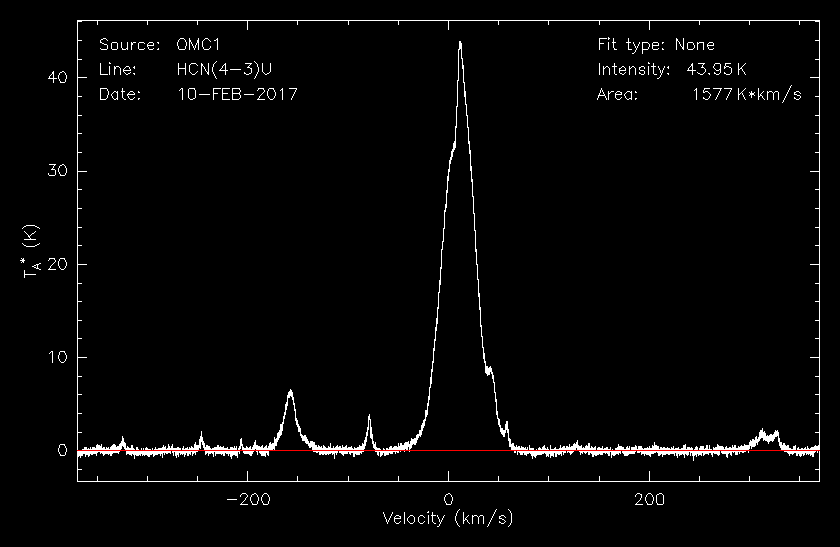

2017-02-10
1.56
38.9
43.96
1577.36
11.736
35.89
