Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Characteristics

Receiver temperatures measured during the commissioning of APEX-2

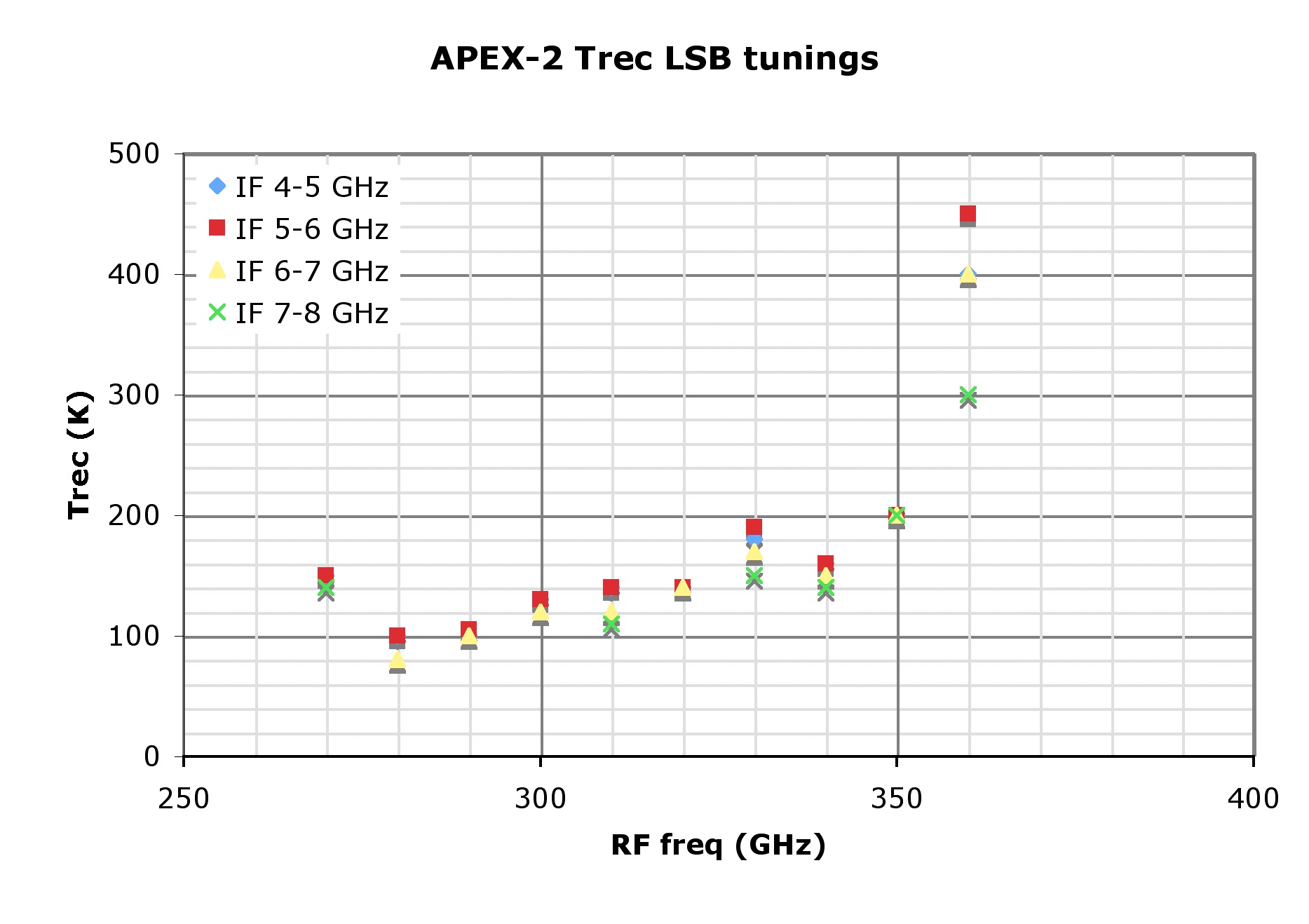

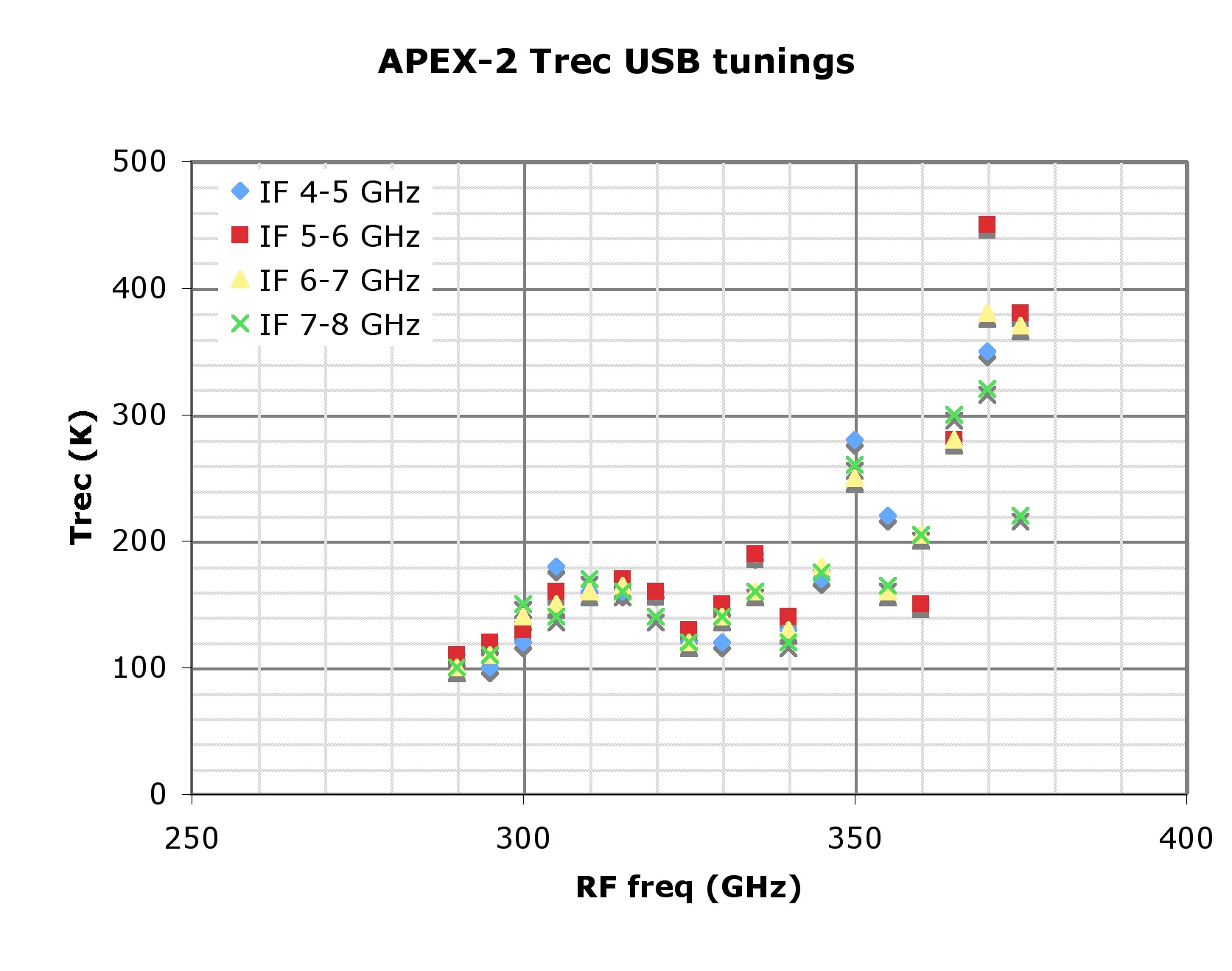

Trec vs. RF range measured on site: LSB tuning and USB tuning

These measurements were taken using the average value of the FFTS backend every GHz for the 4 GHz of IF. The specified frequency is the central RF frequency and the sideband is also specified. The measured temperatures are in a TSSB scale.

Trec vs. IF measured on site at discrete RF frequencies

These measurements were taken using the FFTS backend combining the 4 GHz of IF. The specified frequency is the central RF frequency and the sideband is also specified. The measured temperatures are in a TSSB scale.
