Home > Instrumentation > SHeFI receivers > APEX-1 (230GHz) > APEX-1 (230 GHz) Calibration Plan

Source : IRC+10216

Line : 13CO(2-1)L

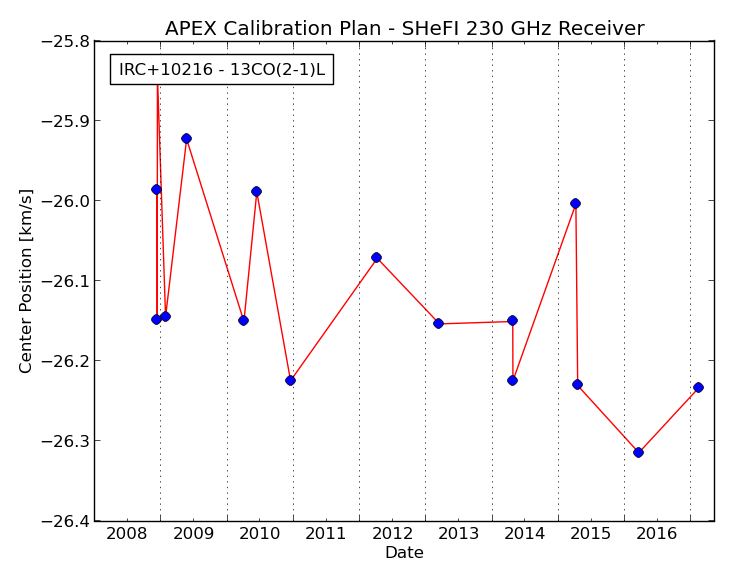

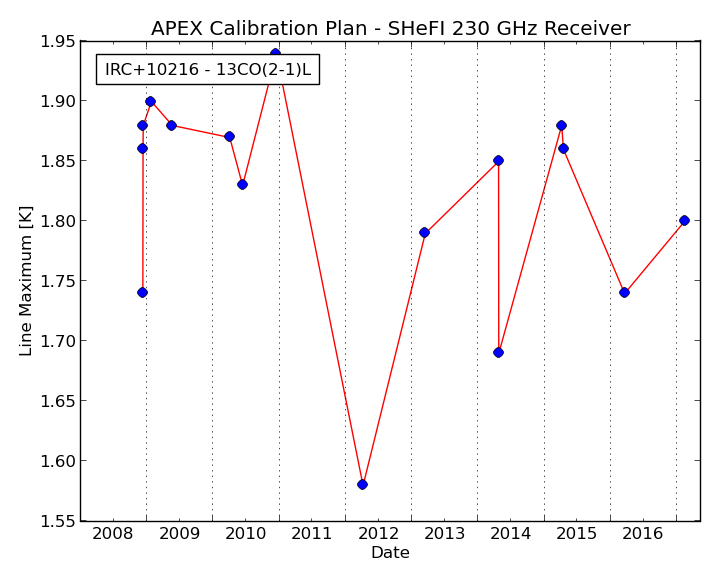

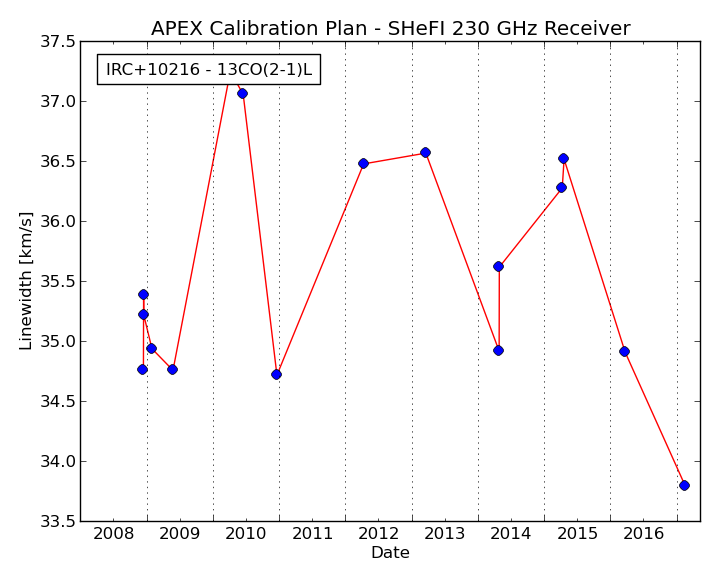

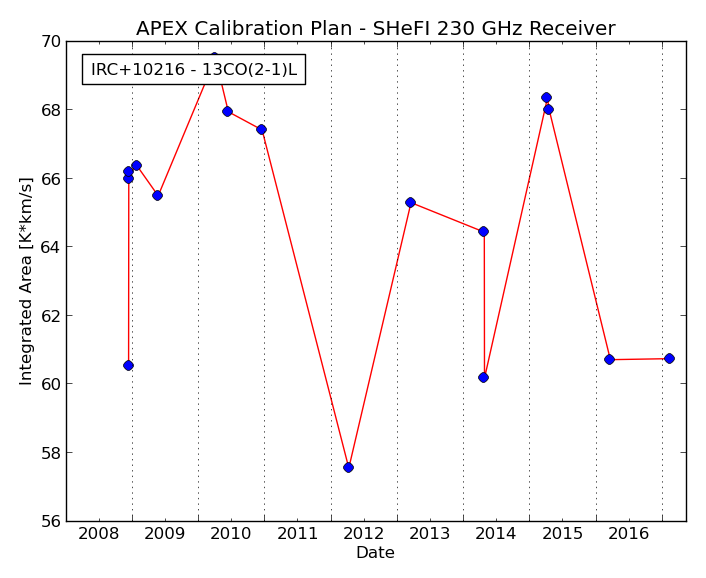

Datepwv [mm]El [°]Maximum [K]Area [K*km/s]Position [km/s]Linewidth [km/s]Spectrum

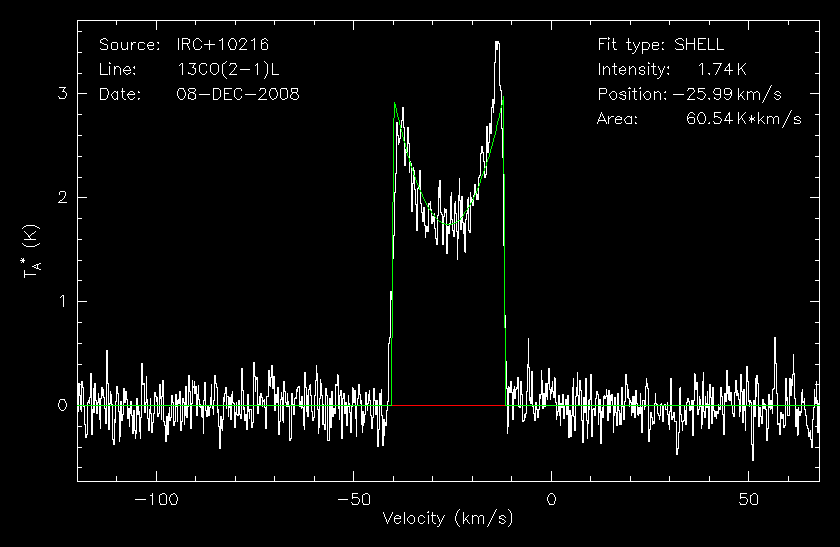

2008-12-08
5.34
32.3
1.74
60.54
-25.99
34.77

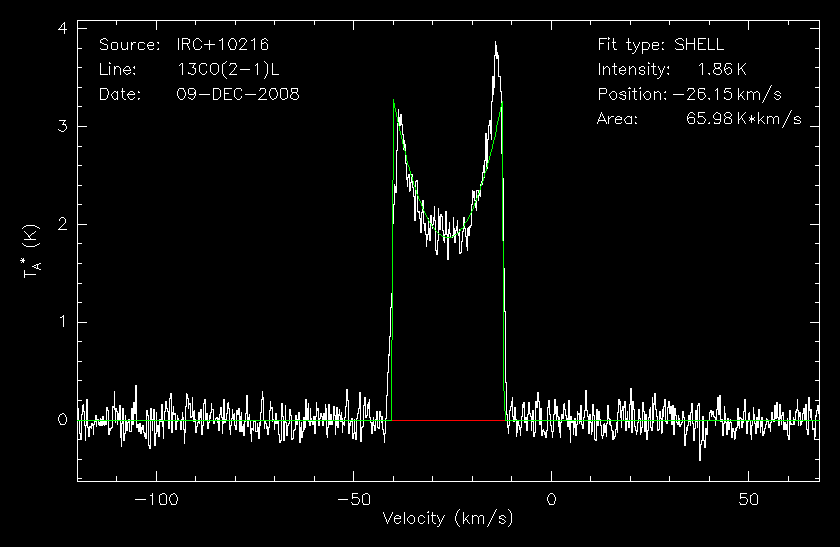

2008-12-09
4.65
51.3
1.89
66.45
-26.15
35.15

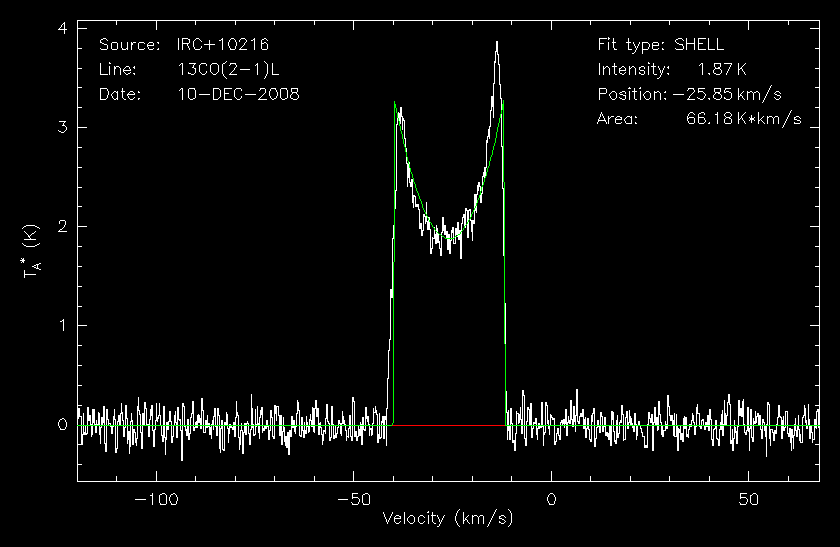

2008-12-10
3.82
41.7
1.88
66.17
-25.84
35.22

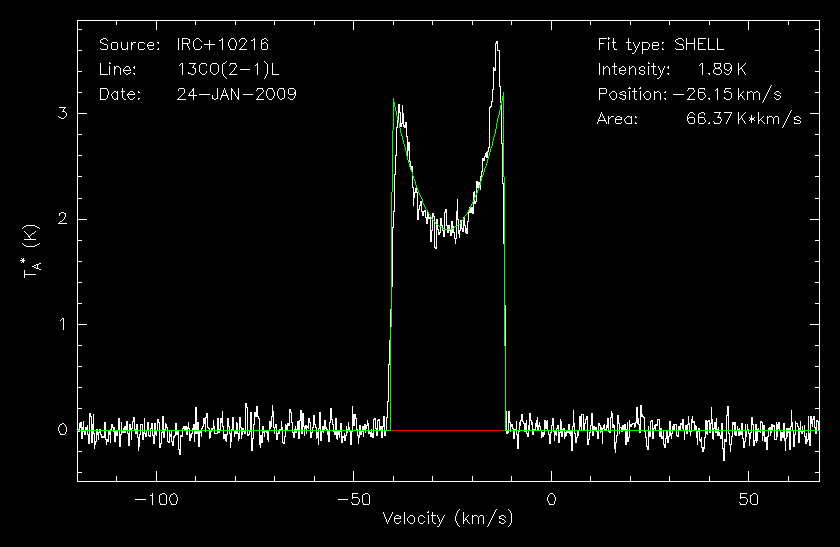

2009-01-24
0.94
53.4
1.88
65.87
-25.99
35.06

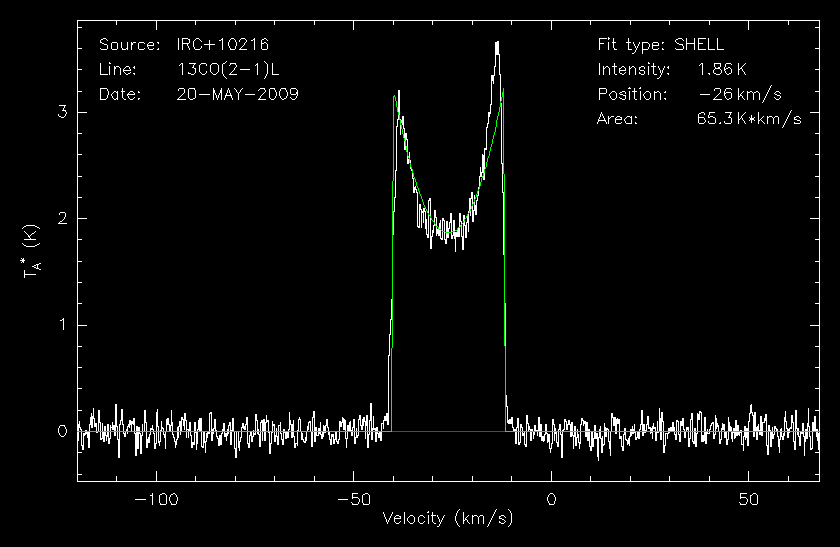

2009-05-20
1.97
49.3
1.89
65.75
-26.14
34.80

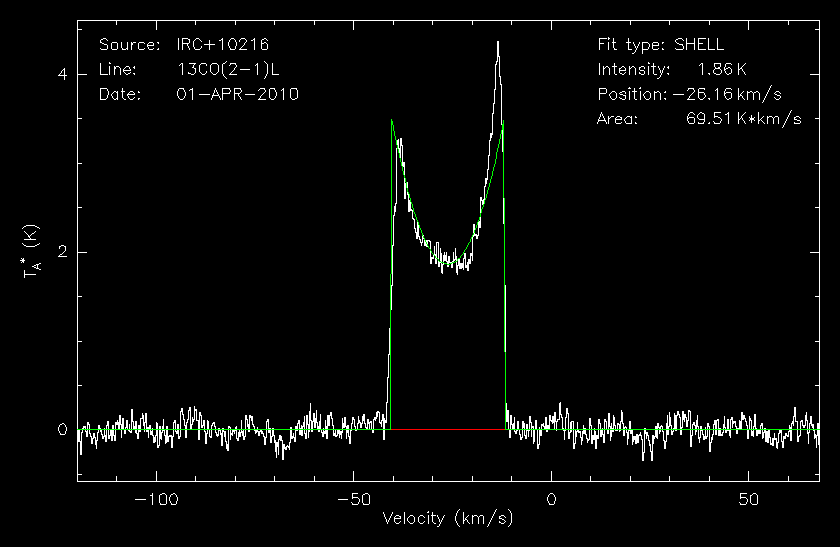

2010-04-01
0.80
52.0
1.84
69.02
-25.99
37.46

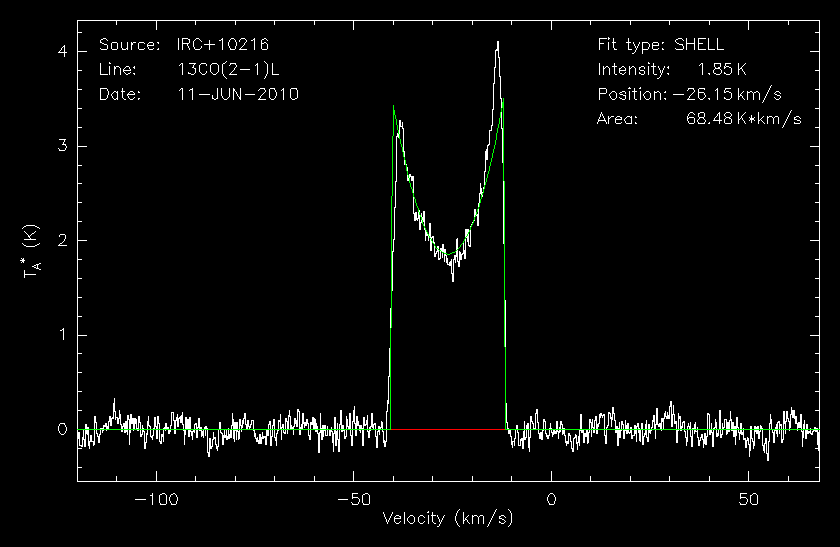

2010-06-11
1.37
42.7
1.86
68.50
-26.14
36.88

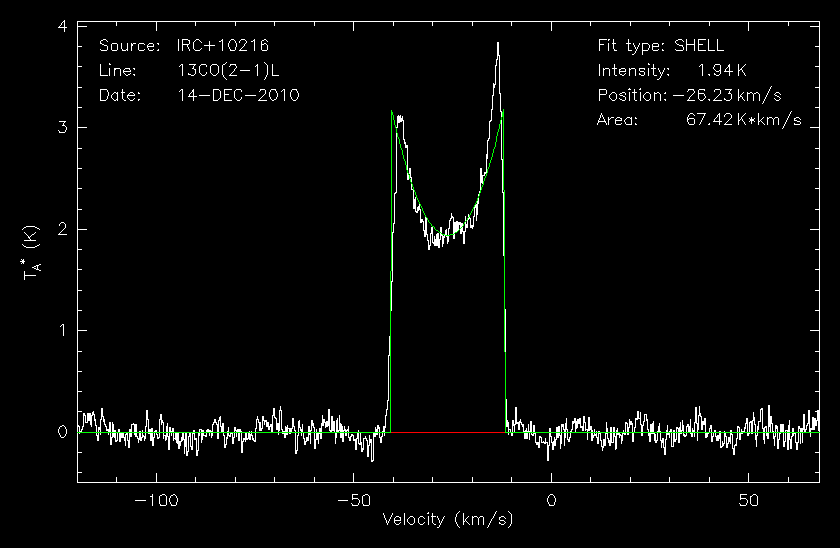

2010-12-14
0.28
42.0
1.94
67.17
-26.00
34.71

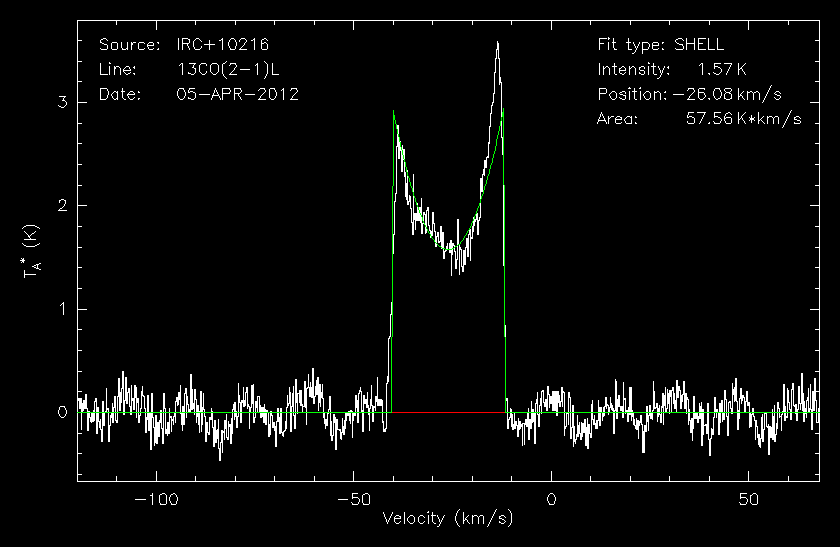

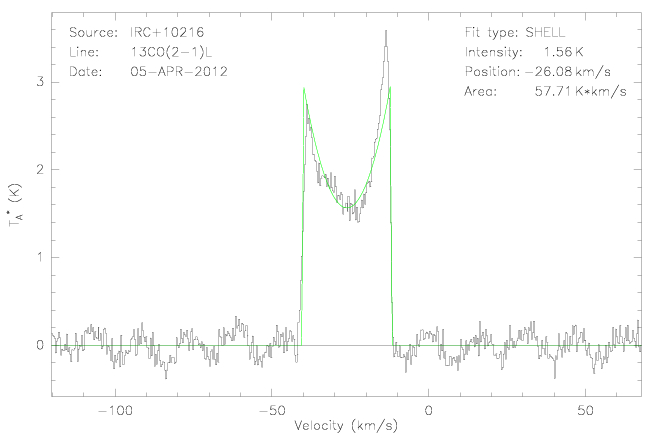

2012-04-05
2.89
39.0
1.58
57.56
-26.07
36.48

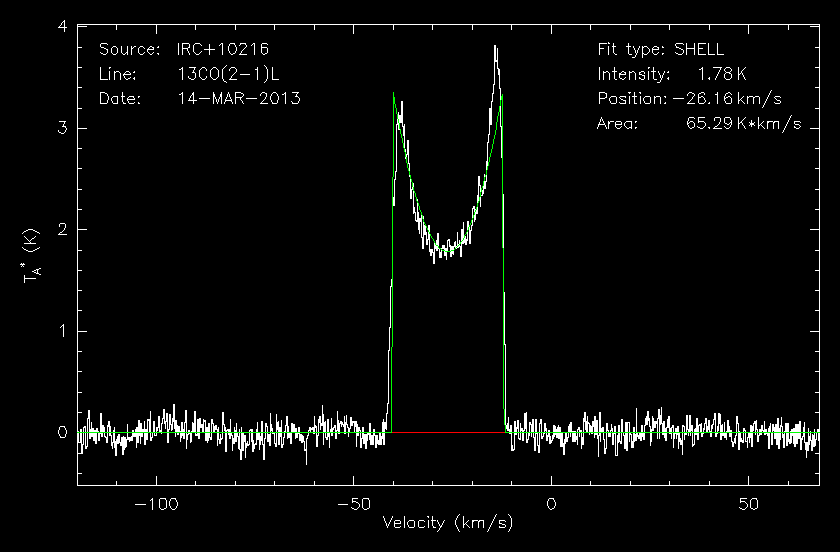

2013-03-14
0.69
53.5
1.80
65.55
-26.23
36.48

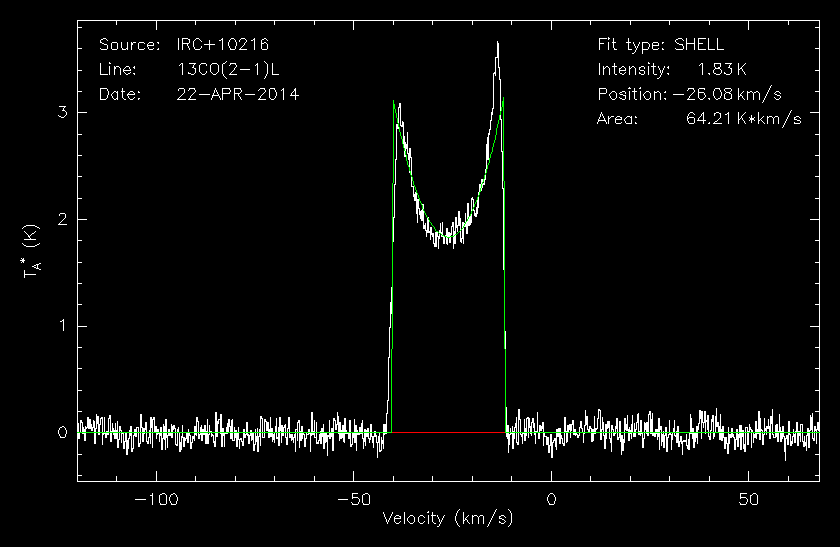

2014-04-22
0.34
52.9
1.85
64.43
-26.15
34.92

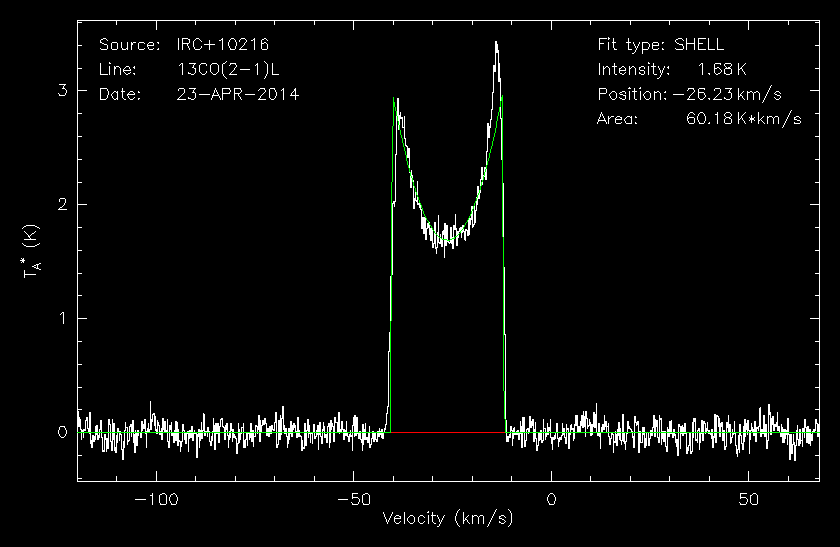

2014-04-23
0.55
52.7
1.71
60.64
-26.24
35.41
