Source : N2071IR

Line : HCN(3-2)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

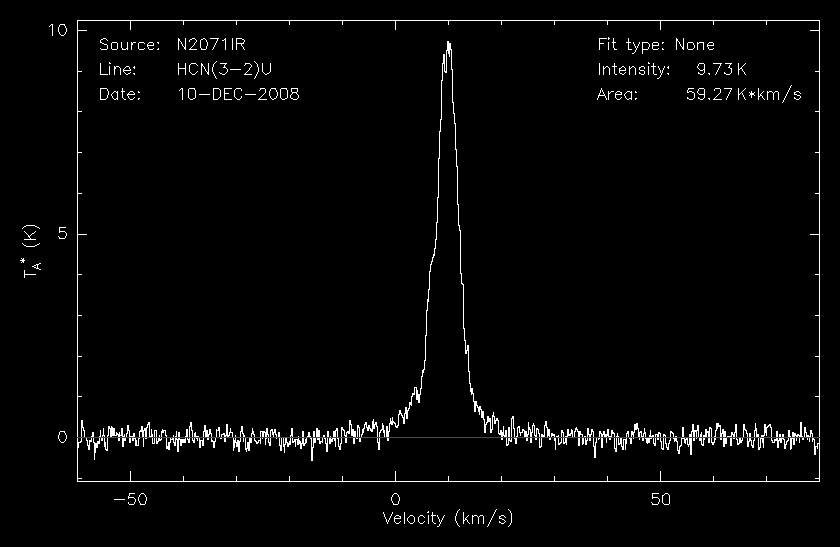

2008-12-10
3.87
56.9
9.74
59.28
9.602
6.09

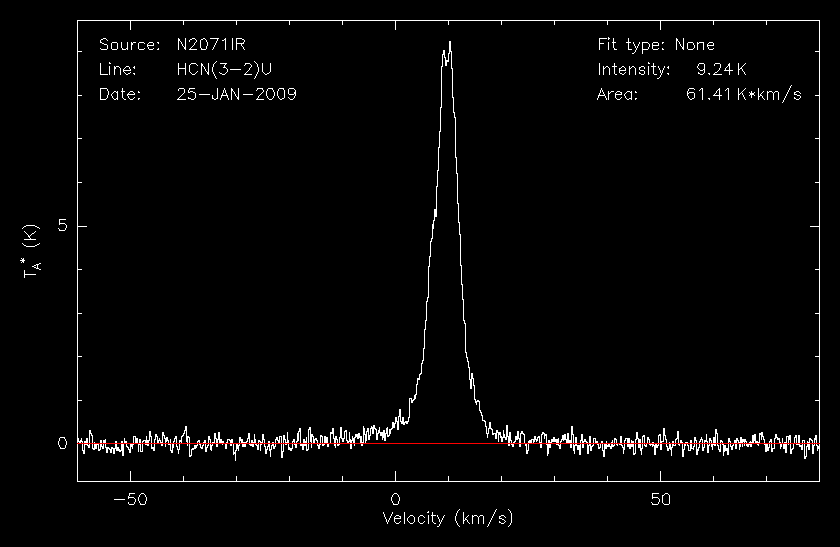

2009-01-25
1.79
60.4
9.25
61.42
8.931
6.64

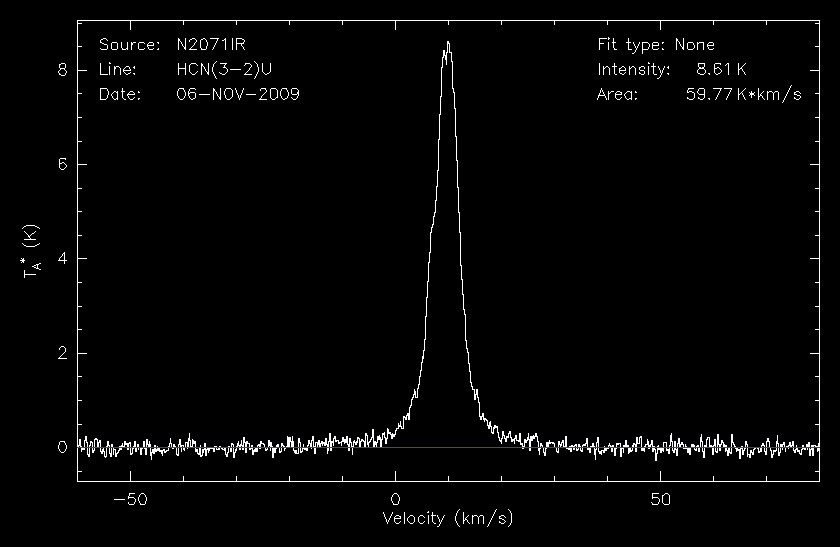

2009-11-06
1.06
58.1
8.62
59.77
9.270
6.93

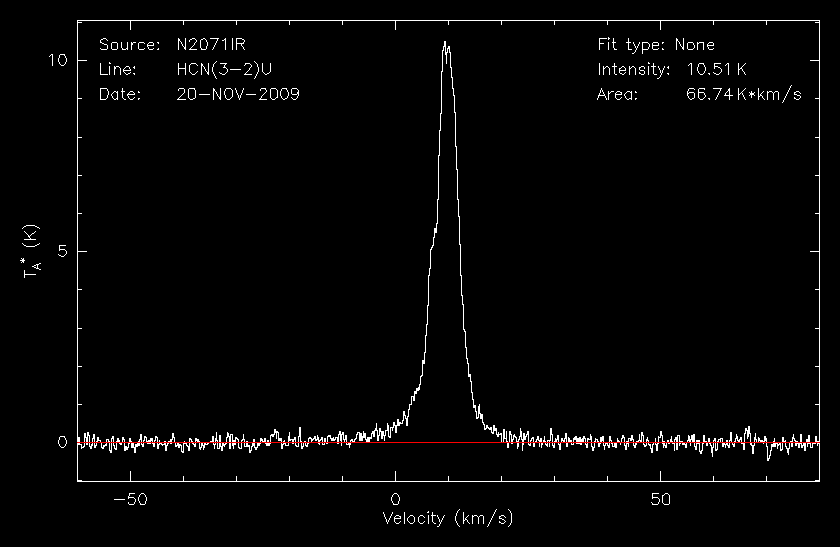

2009-11-20
2.16
66.1
10.51
66.75
9.106
6.35

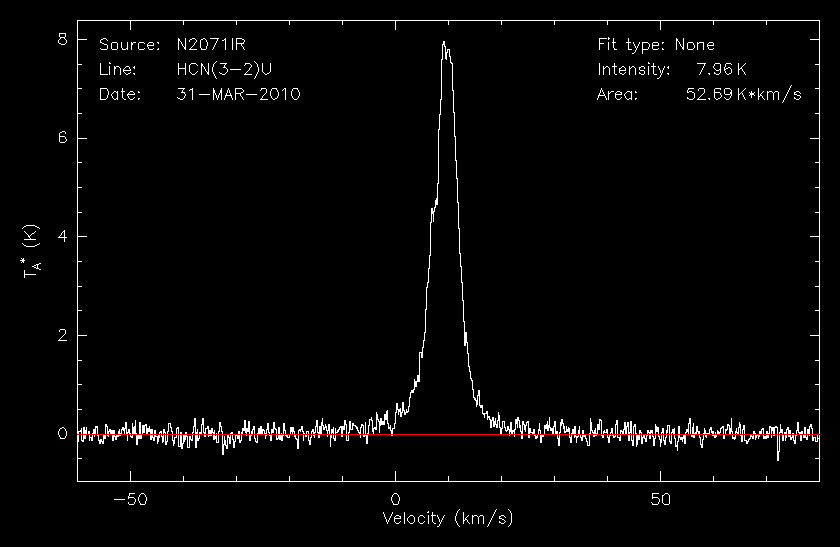

2010-03-31
2.11
66.6
7.97
52.69
9.219
6.61

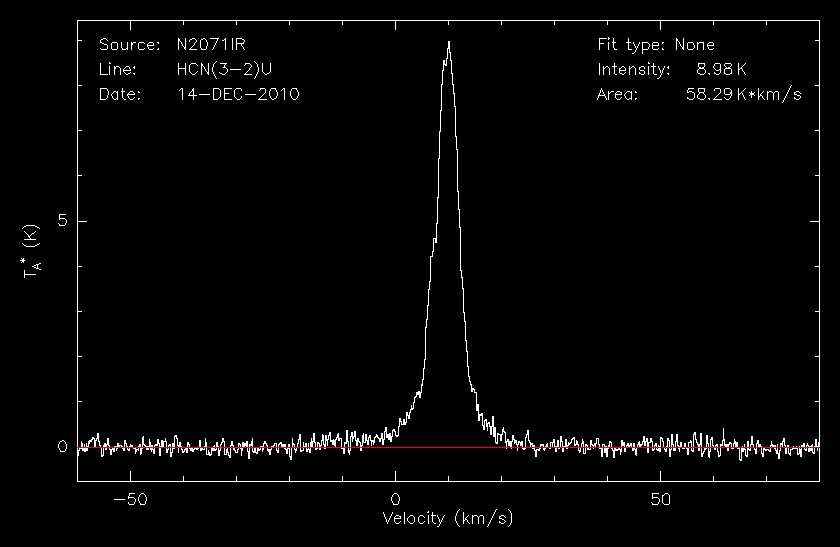

2010-12-14
0.61
66.3
8.98
58.29
9.190
6.49

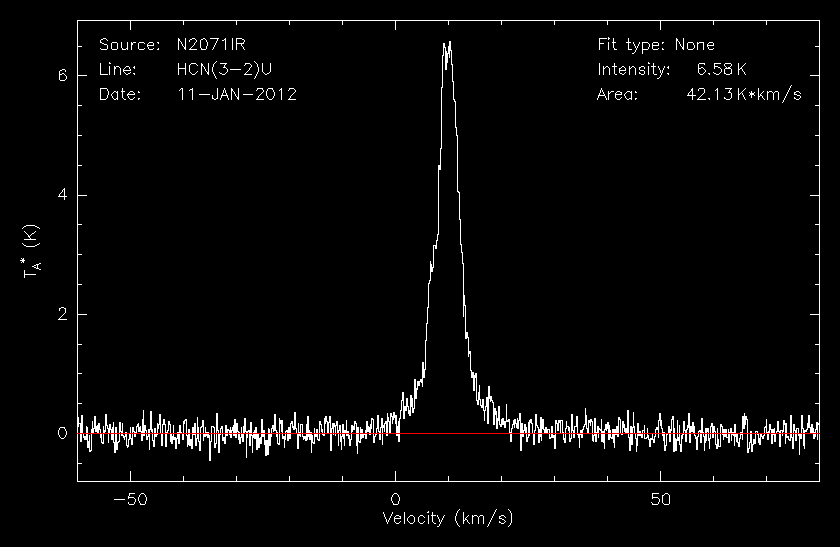

2012-01-11
2.04
35.9
6.58
42.13
10.207
6.40

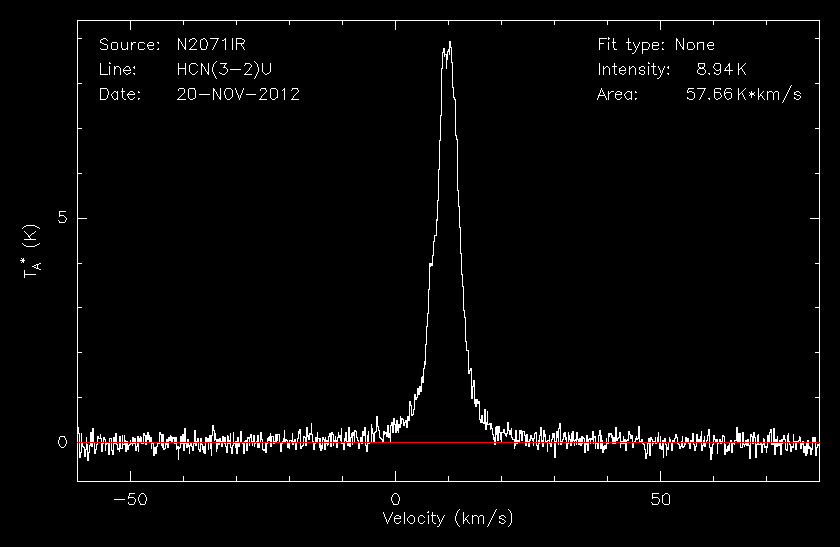

2012-11-20
0.56
65.6
8.95
57.67
9.423
6.45

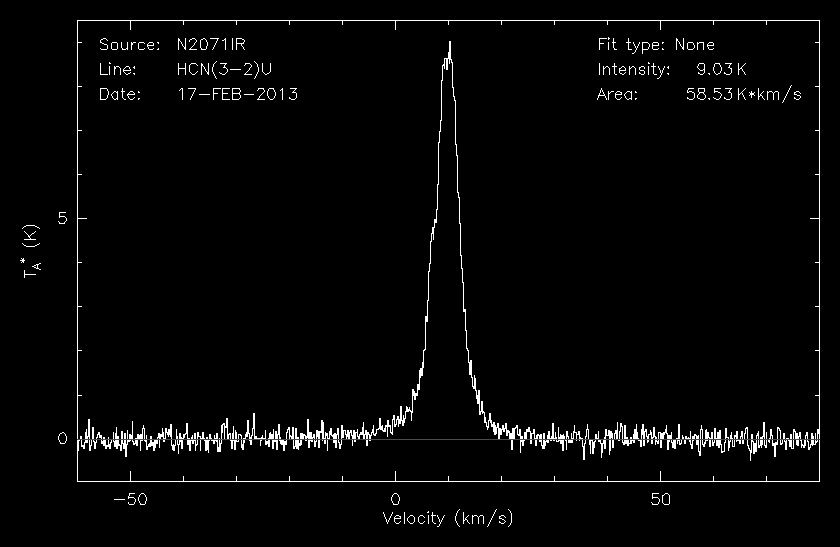

2013-02-17
1.95
66.5
9.03
58.54
9.190
6.48
2013-03-06
2.34
43.3
9.38
57.69
9.376
6.15
2013-03-14
1.16
47.6
10.10
62.11
8.990
6.15

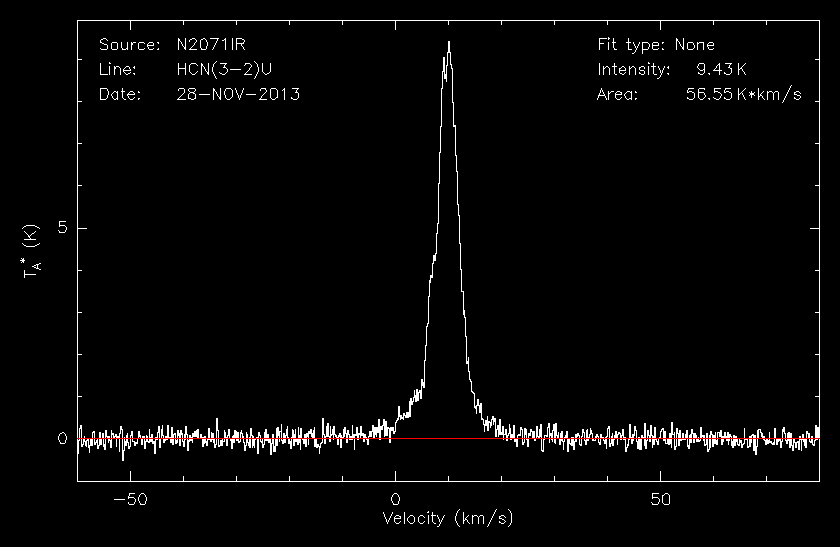

2013-11-28
0.42
47.8
9.43
56.55
9.440
5.99

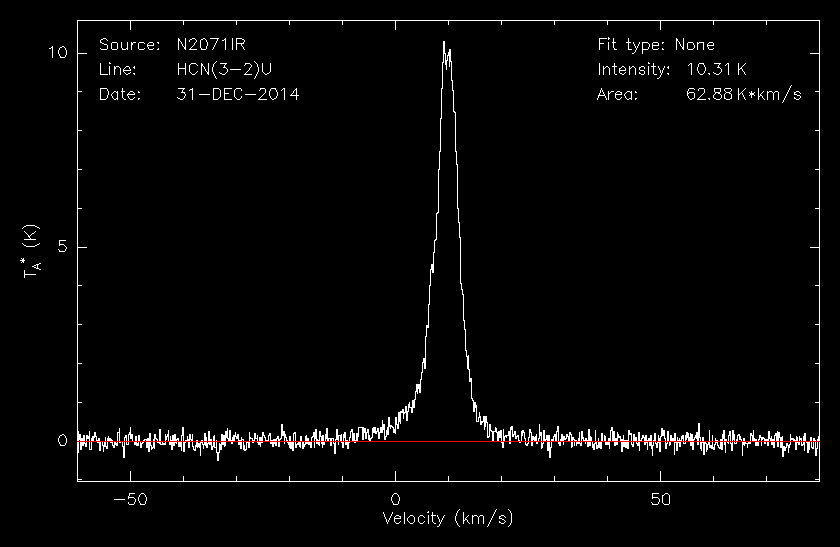

2014-12-31
1.86
57.7
10.31
62.89
9.256
6.10

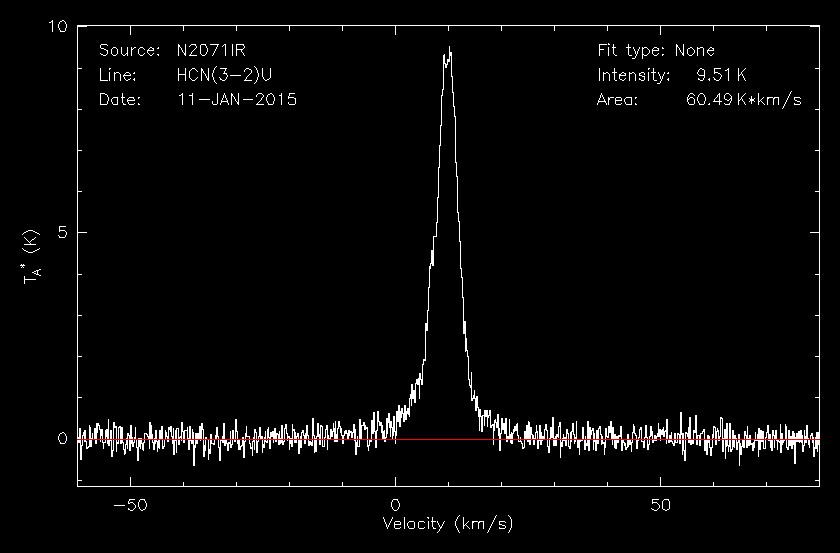

2015-01-11
4.51
56.2
9.52
60.50
9.154
6.36
2015-12-01
2.55
52.3
9.68
60.15
9.276
6.21

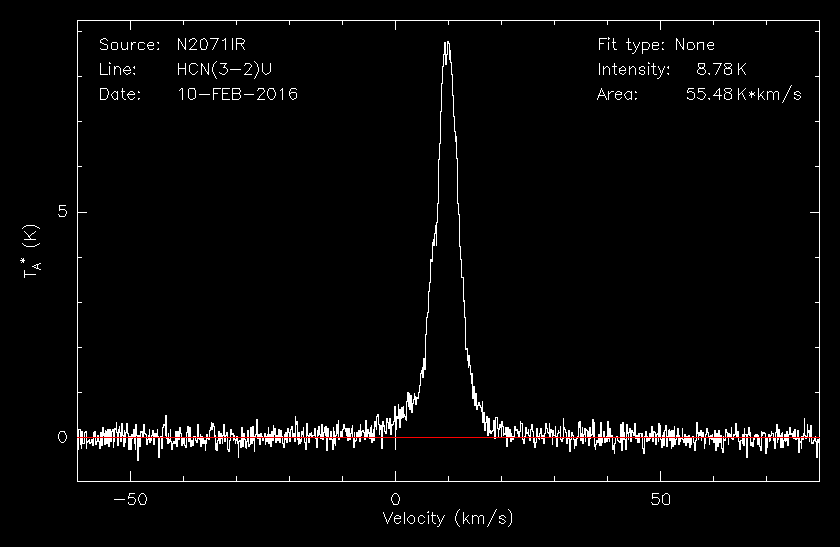

2016-02-10
2.71
49.1
8.79
55.48
9.296
6.31

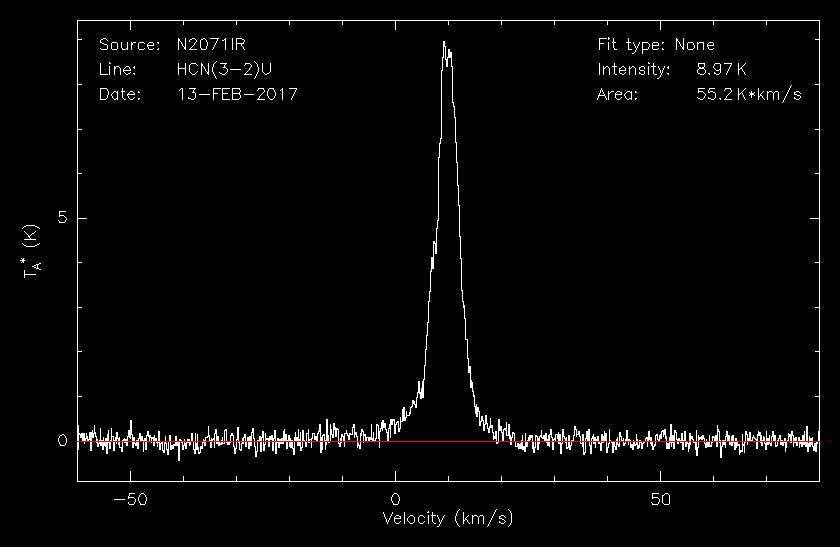

2017-02-13
2.59
63.3
8.98
55.21
9.102
6.15
