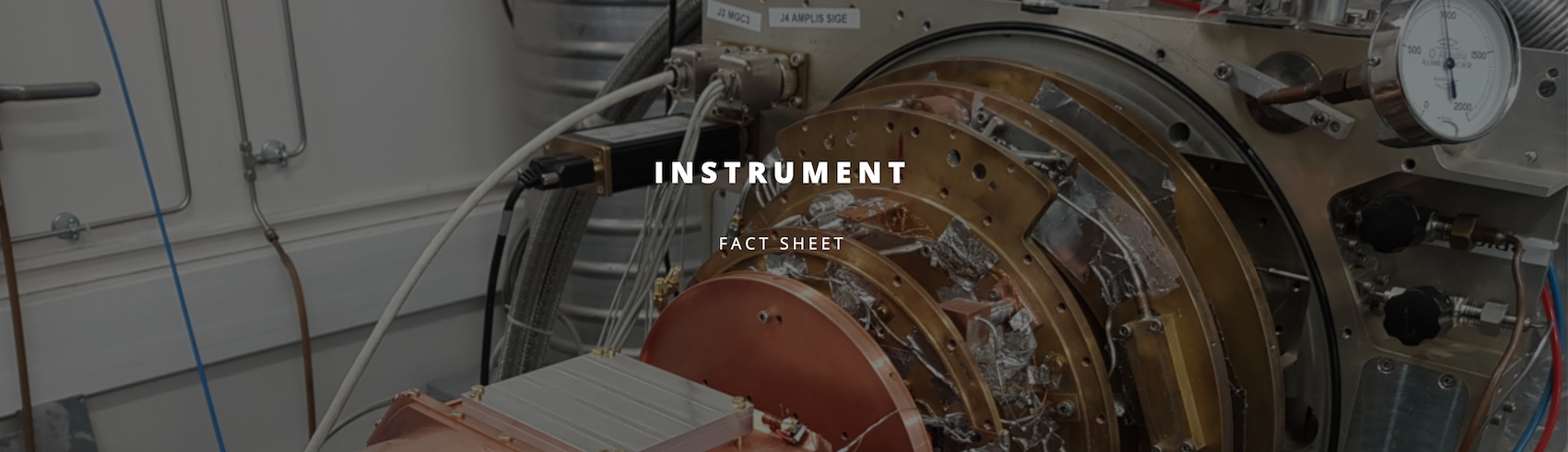

CONCERTO

CONCERTO instrument would be installed on APEX mid February 2021. The instrument is ready and the travel possibilities are still uncertain.

  • Frequency range: 125-310 (360) GHz
  • Angular resolution: 20″ at 320 GHz
  • Field of view: Round diameter ~18′
  • Number of pixels: 2×2168
  • Focal plane: KIDS detectors
  • Cryostat: closed circle 3He-4He dilution
  • Spectral resolution: 1.5 GHz
  • Spectrometer: Martin-Puplett interferometer

To know more, check the instrument dedicated pages: https://mission.lam.fr/concerto/
